Speed Limiter System Display

Functions of each switch are listed in the following table.

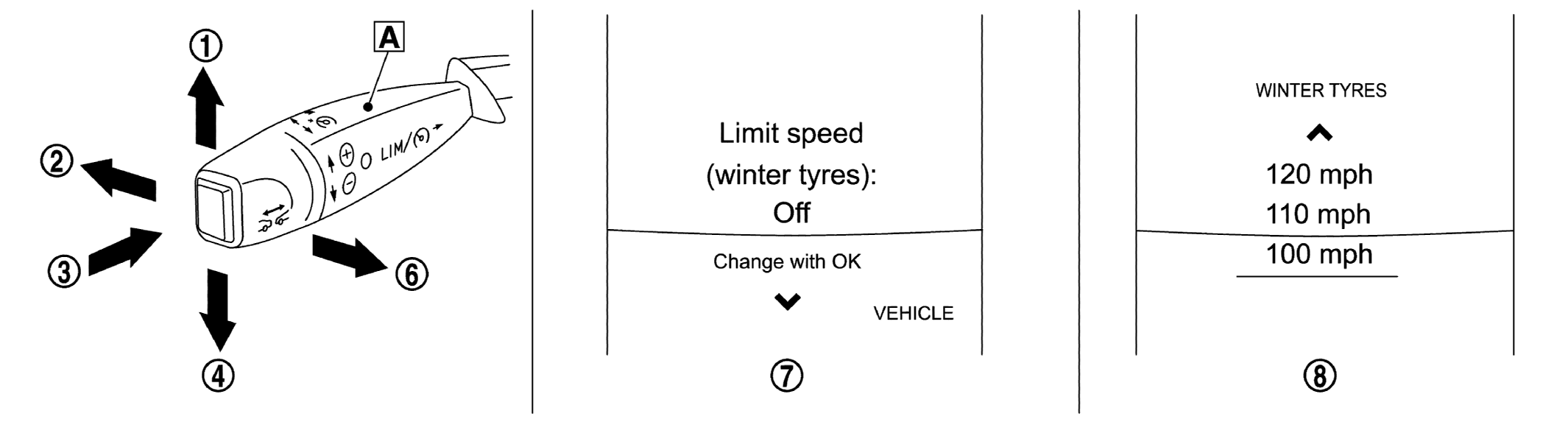

GNSJSOIA2336ZZ-336Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A : Cruise control lever

SWITCH FUNCTION

No. Description Function
WHITE-1 Accelerate and set switch Store the current speed or a higher speed
WHITE-2 Switch OFF switch Deactivate the variable speed limiter system
WHITE-3 Speed limiter switch Switch between cruise control and variable speed limiter
WHITE-4 Decelerate and set switch Store the current speed or a lower speed
WHITE-6 Resume from memory switch Store the current speed or call up the last store speed
WHITE-7 Permanent speed limiter system setting display (Information display) The setting of permanent speed limiter system can be switched between ON and OFF
WHITE-8 Permanent speed limiter speed setting display (Information display) Changes the setting speed of permanent speed limiter
