Map Lamp Bulb

WARNING: This page is about a different car, the 2017 Infiniti Q70L. However, it is still accessible from the selected car via links, so may be relevant.

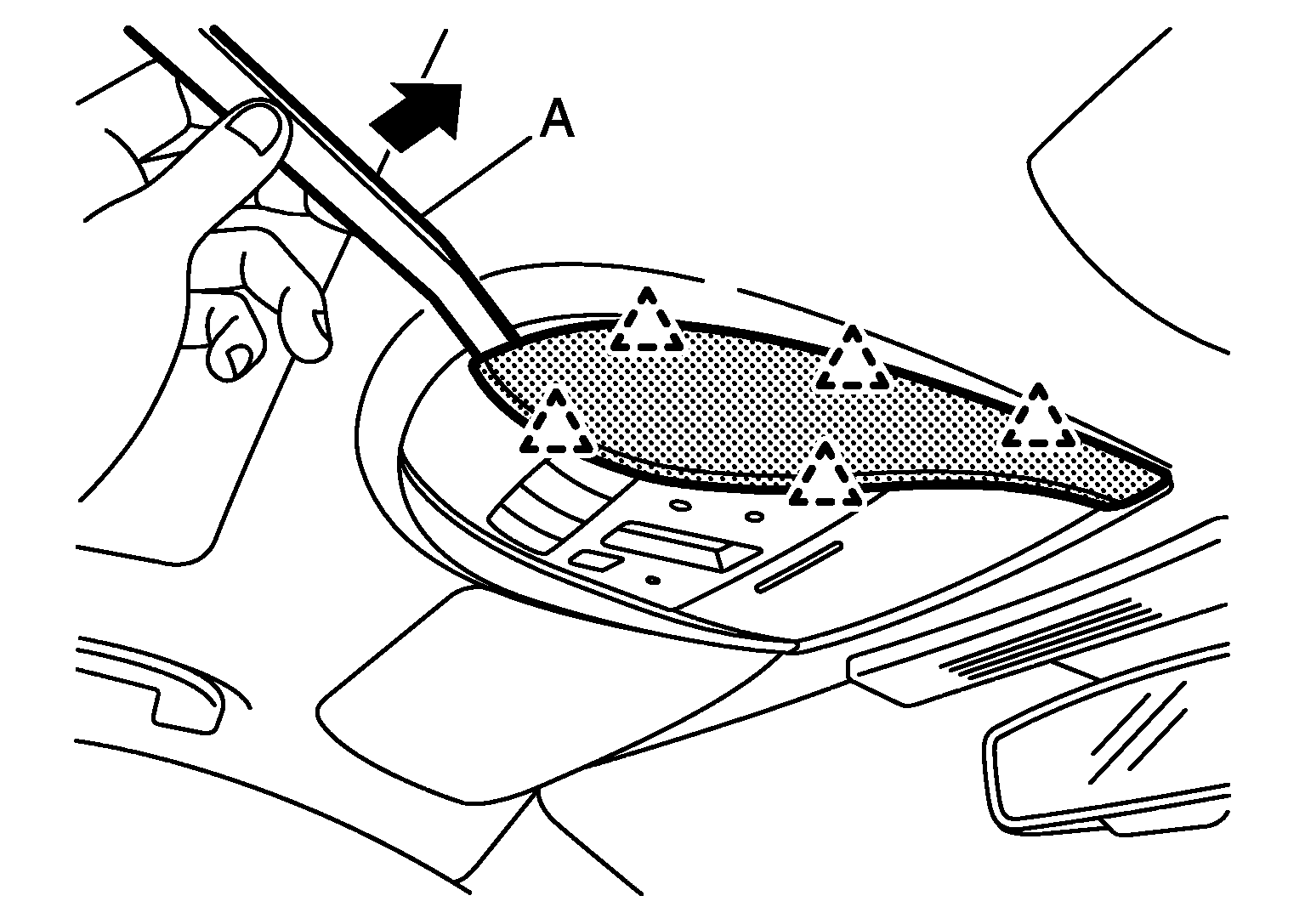

  1. Insert a remover tool (A) into the gap between lens to disengage fixing pawls as shown by the arrow in the figure, and then remove lens.
    GNSJMLIA1262ZZ-262Courtesy of NISSAN NORTH AMERICA, INC.
    SANKAKU-H : Pawl
  2. Rotate bulb clockwise or counterclockwise by 90° and remove bulb as shown in the figure.
    G08655034Courtesy of NISSAN NORTH AMERICA, INC.
