Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2017 Infiniti Q70L. However, it is still accessible from the selected car via links, so may be relevant.

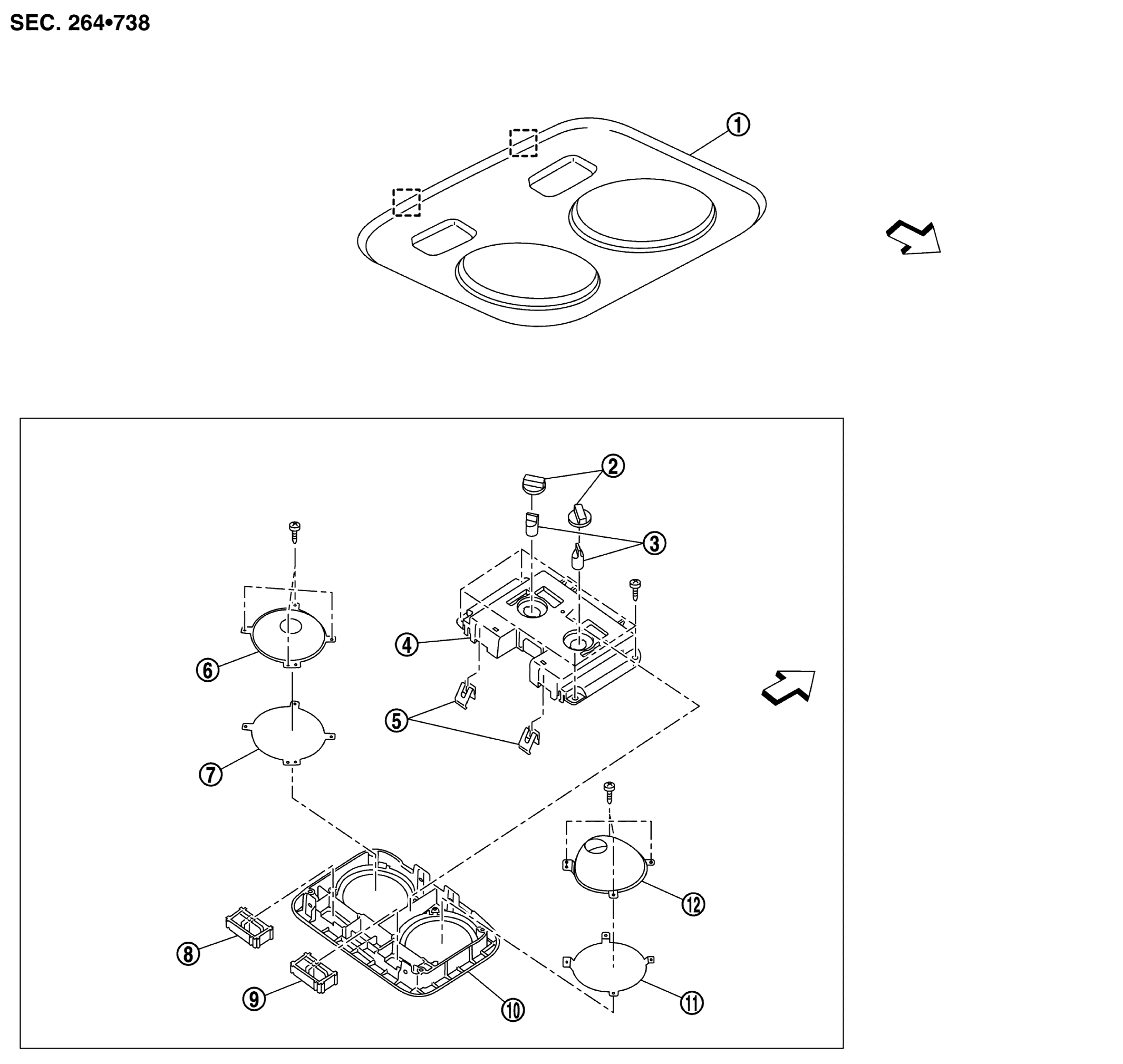

GNSJMLIA2789ZZ-789Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear spot lamp assembly 2. Bulb base 3. Bulb
4. Lamp housing 5. Metal clip 6. Reflector LH
7. Lens LH 8. Knob LH 9. Knob RH
10. Lamp cover 11. Lens RH 12. Reflector RH
SHIKAKU-H : Metal clip
ARROW : Vehicle front
