Exploded View

WARNING: This page is about a different variant/trim than selected.

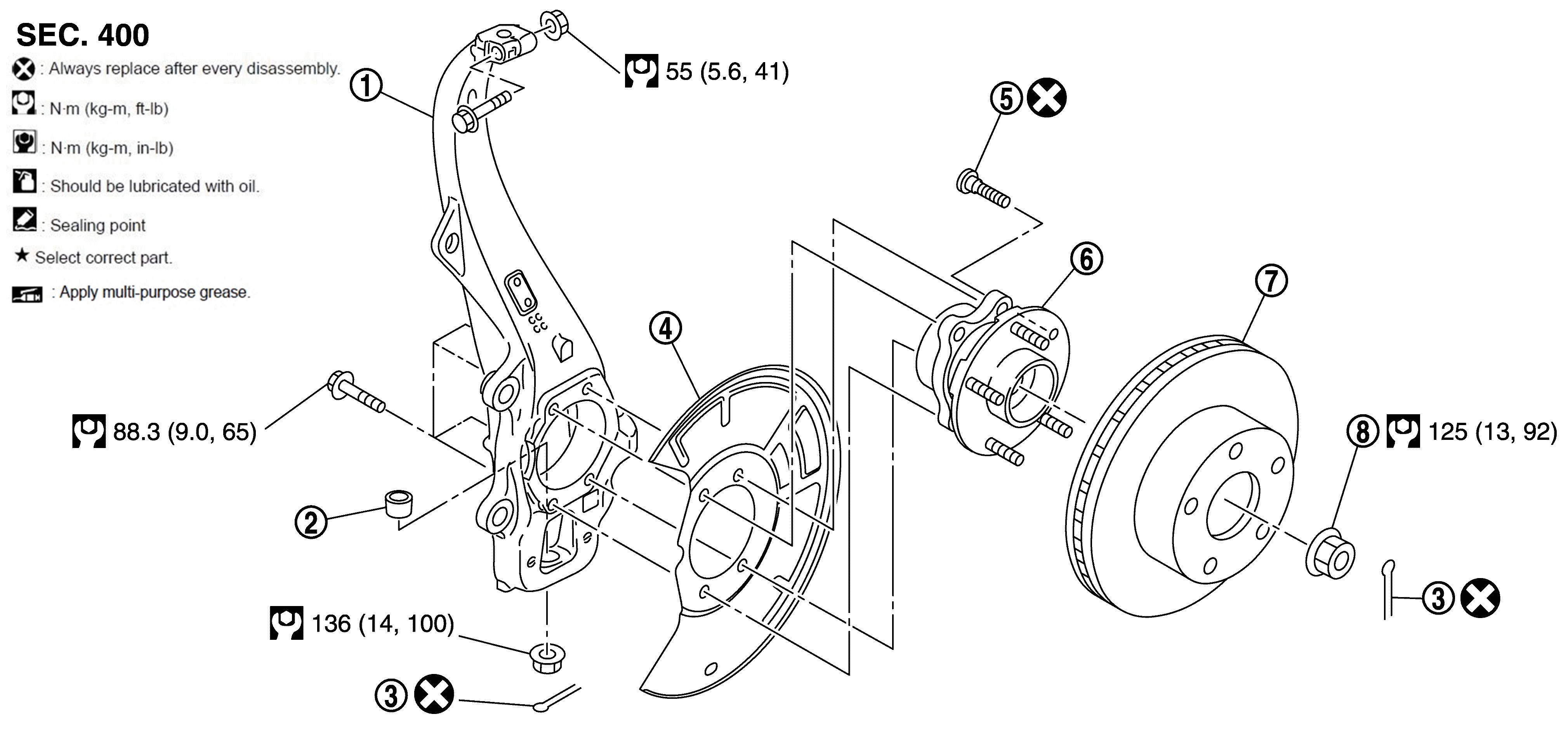

Fig 1: Front Wheel Hub And Knuckle With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Steering Knuckle	Ball Seat	Cotter Pin
Splash Guard	Hub Bolt	Wheel Hub And Bearing Assembly
Disc Rotor	Wheel Hub Lock Nut
: N•m (kg-m, ft-lb)
: Always replace after every disassembly.
