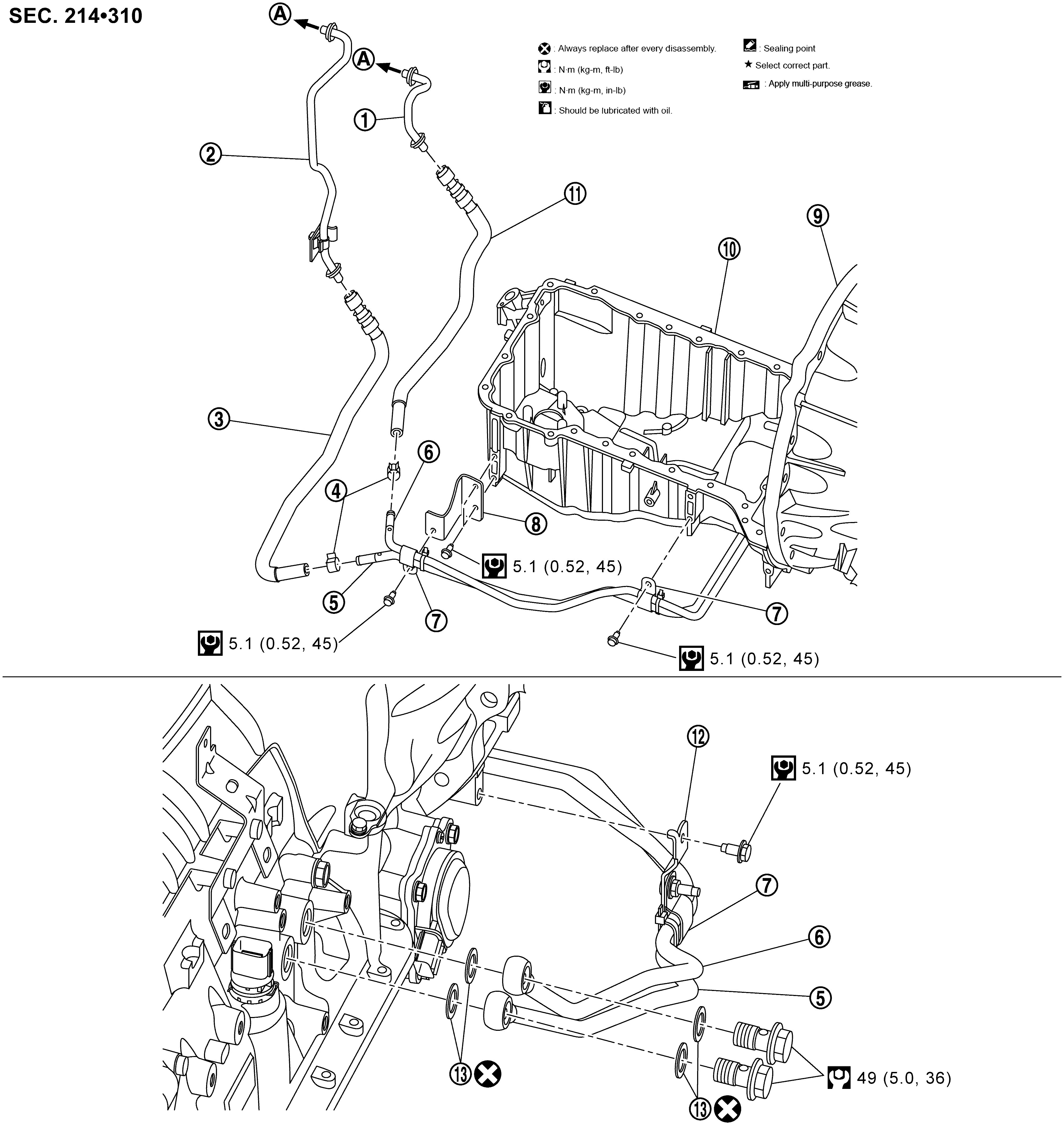

Exploded View With Torque Specifications

2WD Models

GNSJSDIA9099GB-099

Courtesy of NISSAN NORTH AMERICA, INC.

	Fluid cooler tube A		Fluid cooler tube B		A/T fluid cooler hose B
	Hose clamp		Fluid cooler tube D		Fluid cooler tube C
	Clip		Bracket		Transmission assembly
	Oil pan upper		A/T fluid cooler hose A		Bracket
	Copper washer
	To radiator
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)

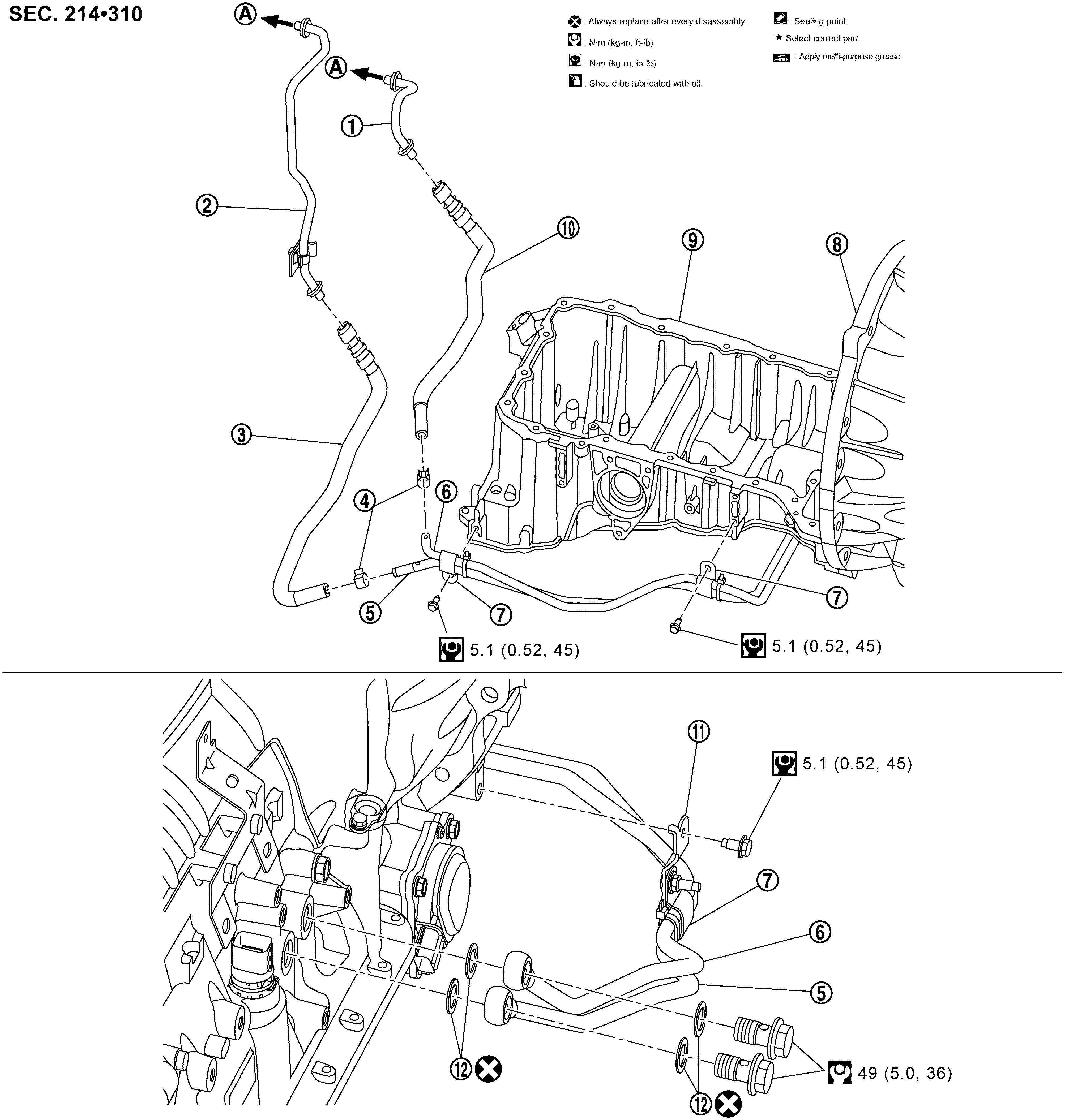

AWD Models

GNSJSDIA9100GB-100

Courtesy of NISSAN NORTH AMERICA, INC.

	Fluid cooler tube A		Fluid cooler tube B		A/T fluid cooler hose B
	Hose clamp		Fluid cooler tube D		Fluid cooler tube C
	Clip		Transmission assembly		Oil pan upper
	A/T fluid cooler hose A		Bracket		Copper washer
	To radiator
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
