Automatic Trans
>>
Automatic Transmission (Introduction, Wiring Diagrams And Basic Inspection)
>>
System Description
>>
System
>>
Information Display (Combination Meter)
>>
Shift Position Indicator
>>

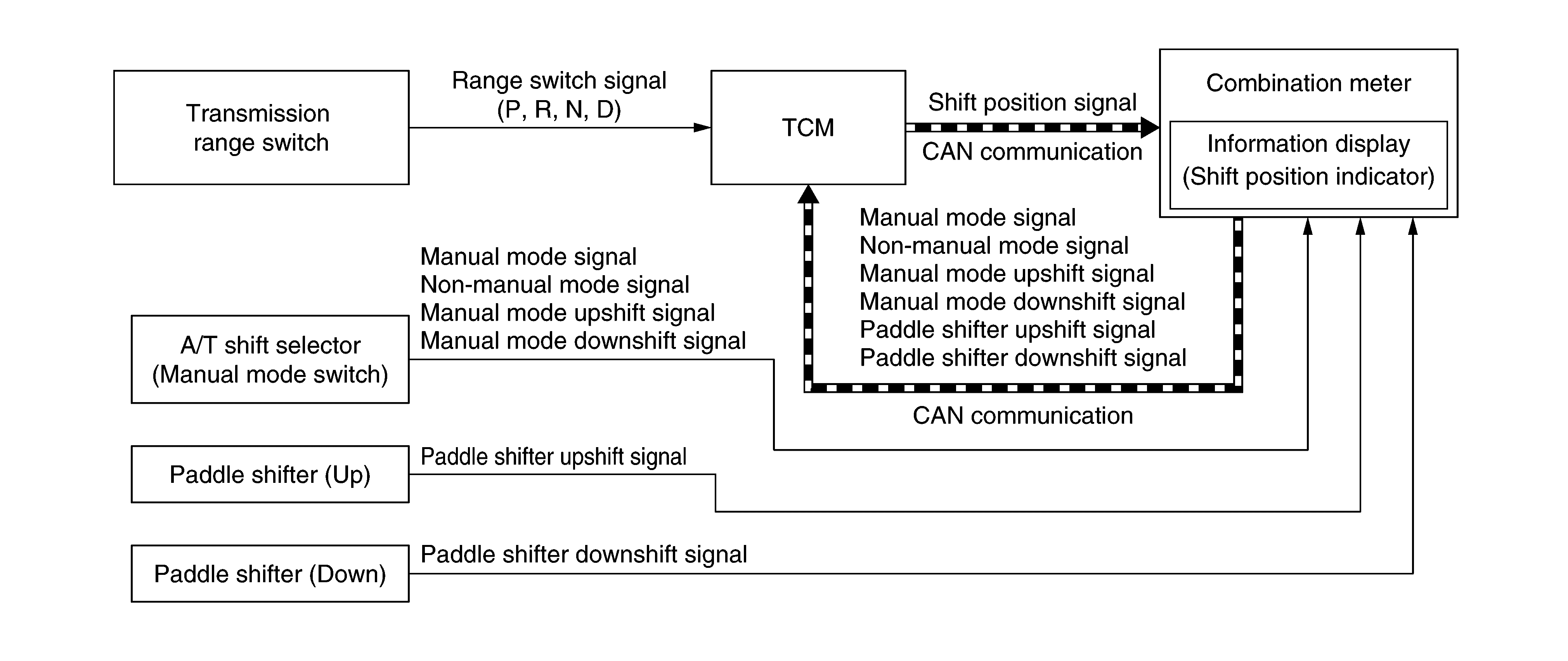

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Paddle shifter is applied to vehicle with Paddle Shifter.
