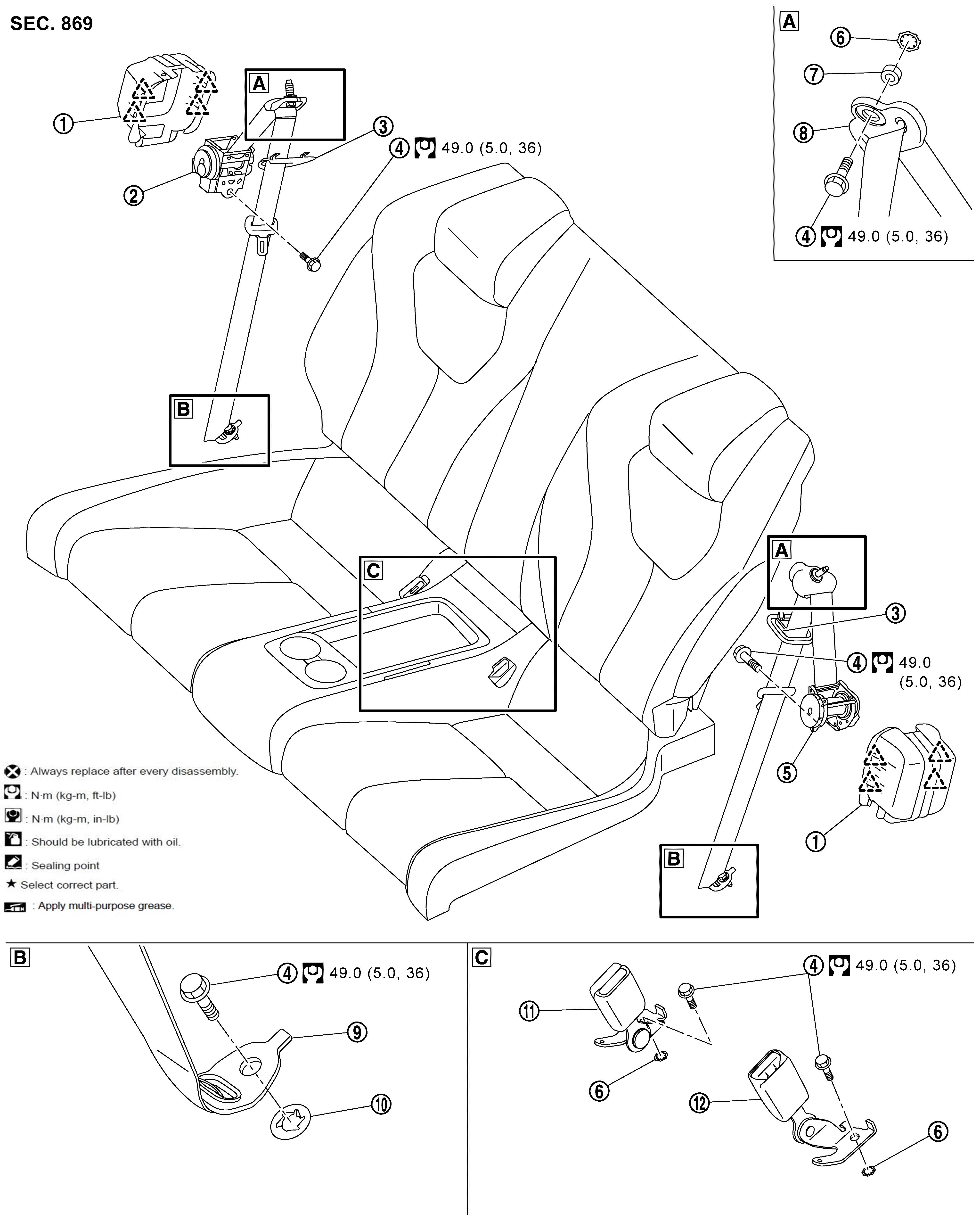

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
 |
Retractor cover |
 |
Seat belt retractor RH |
 |
Seat belt escutcheon |
 |
Anchor bolt |
 |
Seat belt retractor LH |
 |
Locking washer |
 |
Spacer |
 |
Shoulder anchor |
 |
Lap outer anchor plate |
 |
Locking washer |
 |
Seat belt buckle RH |
 |
Seat belt buckle LH |
 |
: Pawl |
 |
: N•m (kg-m, ft-lb) |
