Exploded View

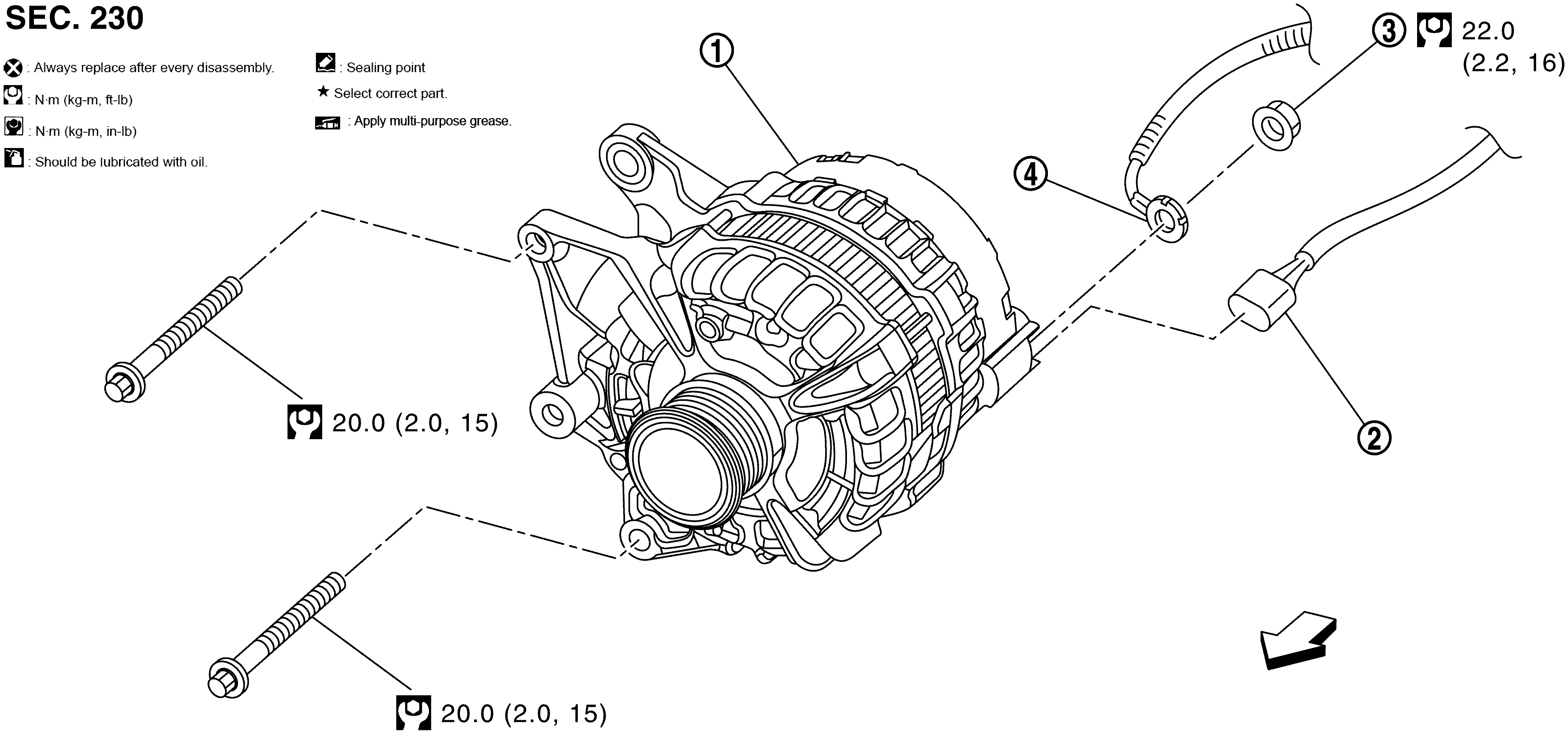

Fig 1: Alternator With Torque Specifications
GNSJMMIA1818GB-818WHITE-1WHITE-2WHITE-3WHITE-4ARROWBOLTCourtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Alternator WHITE-2 Alternator Connector WHITE-3 "B" Terminal Nut
WHITE-4 "B" Terminal Harness
ARROW : Vehicle front
BOLT : N•m (kg-m, ft-lb)
