For VR30DDTT Engine Models

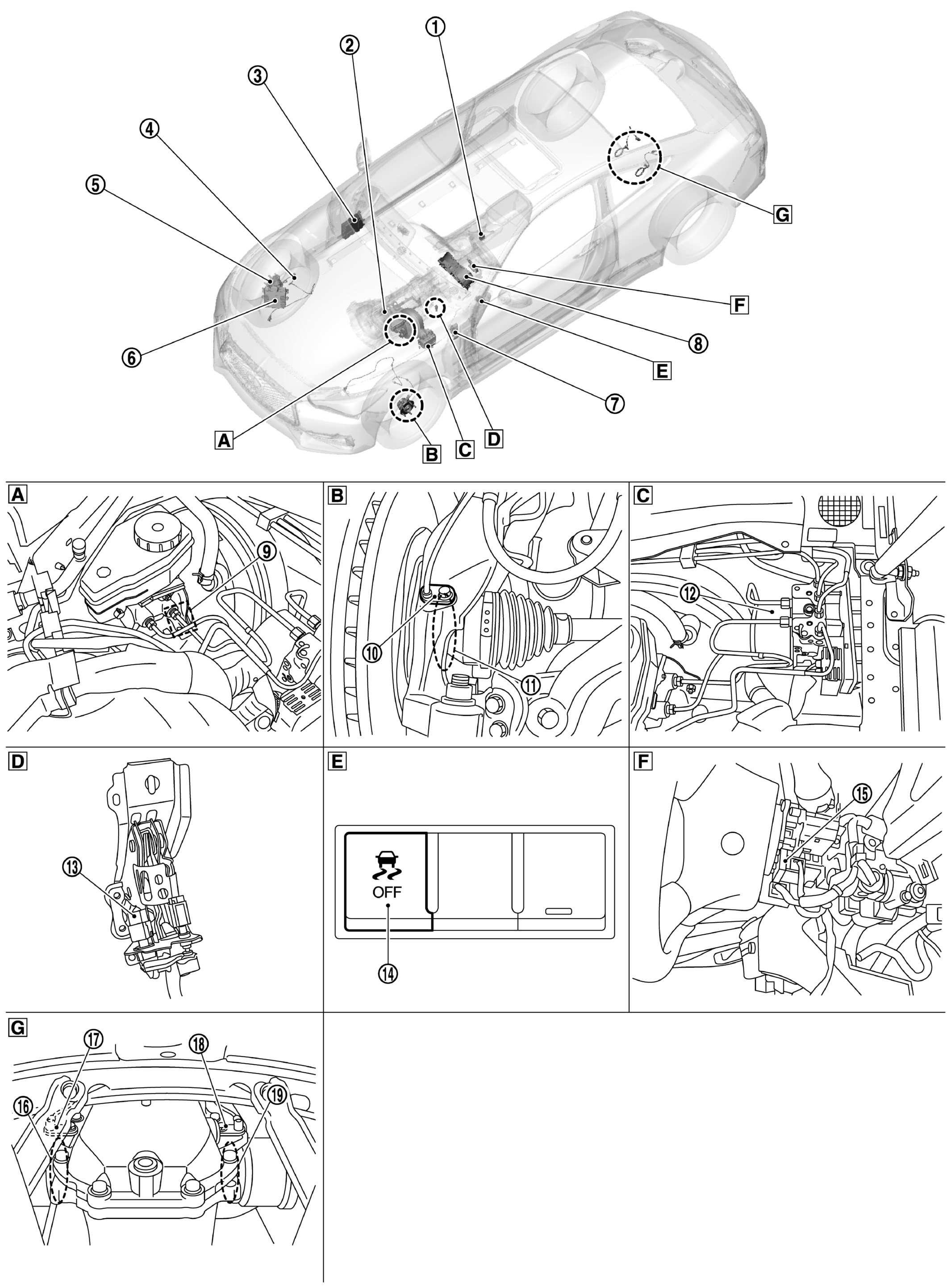

GNSJSFIA3923ZZ-923Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Brake Booster WZ-B Steering Knuckle WZ-C Inside Of Brake Master Cylinder Cover
WZ-D Brake Pedal WZ-E Instrument Driver Lower Panel WZ-F Back Of Spiral Cable Assembly
WZ-G Rear Final Drive
No. Component Parts Function
WHITE-1 Drive Mode Select Switch Mainly transmits the following signals to Chassis Control Module unit.
  • Drive mode signal

Refer to COMPONENT LOCATION for detailed installation location.
WHITE-2 TCM Mainly transmits the following signals to ABS Actuator And Electric Unit (Control Unit) via CAN Communication.
  • Current gear position signal

Refer to COMPONENT LOCATION for detailed installation location.
WHITE-3 Steering Force Control Module* Mainly transmits the following signals to ABS Actuator And Electric Unit (Control Unit) via CAN Communication.
  • Steering Pinion Angle signal
  • Direct Adaptive Steering malfunction signal

Refer to COMPONENT LOCATION for detailed installation location.
WHITE-4 Front RH Wheel Sensor WHEEL SENSOR AND SENSOR ROTOR
WHITE-5 Front RH Sensor Rotor WHEEL SENSOR AND SENSOR ROTOR
WHITE-6 ECM Mainly transmits the following signals to ABS Actuator And Electric Unit (Control Unit) via CAN Communication.
  • Accelerator Pedal Position signal
  • Engine torque signal
  • Engine speed signal

Mainly receives the following signals from ABS Actuator And Electric Unit (Control Unit) via CAN Communication.
  • Engine torque request signal

Refer to COMPONENT LOCATION for detailed installation location.
WHITE-7 Chassis Control Module Mainly transmits the following signals to ABS Actuator And Electric Unit (Control Unit) via CAN Communication.
  • Drive mode signal
  • Active Trace Control signal
  • Brake hold status signal
  • Brake hold request signal

Refer to COMPONENT LOCATION for detailed installation location.
WHITE-8 Combination Meter Mainly transmits the following signals to ABS Actuator And Electric Unit (Control Unit) via CAN Communication.
  • Brake Fluid Level Switch signal
  • Parking Brake Switch signal

Mainly receives the following signals from ABS Actuator And Electric Unit (Control Unit) via CAN Communication.
  • ABS Warning Lamp signal
  • Brake Warning Lamp signal
  • VDC OFF Indicator Lamp signal
  • VDC Warning Lamp signal

Refer to COMPONENT LOCATION for detailed installation location.
WHITE-9 Vacuum Sensor VACUUM SENSOR
WHITE-10 Front LH Wheel Sensor WHEEL SENSOR AND SENSOR ROTOR
WHITE-11 Front LH Sensor Rotor WHEEL SENSOR AND SENSOR ROTOR
WHITE-12 ABS Actuator And Electric Unit (Control Unit) ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
WHITE-13 Stop Lamp Switch STOP LAMP SWITCH
WHITE-14 VDC OFF Switch VDC OFF SWITCH
WHITE-15 Steering Angle Sensor STEERING ANGLE SENSOR
WHITE-16 Rear LH Sensor Rotor WHEEL SENSOR AND SENSOR ROTOR
WHITE-17 Rear LH Wheel Sensor WHEEL SENSOR AND SENSOR ROTOR
WHITE-18 Rear RH Wheel Sensor WHEEL SENSOR AND SENSOR ROTOR
WHITE-19 Rear RH Sensor Rotor WHEEL SENSOR AND SENSOR ROTOR

* : With Direct Adaptive Steering
