Lane Camera Unit 2
Lane Camera Unit 2

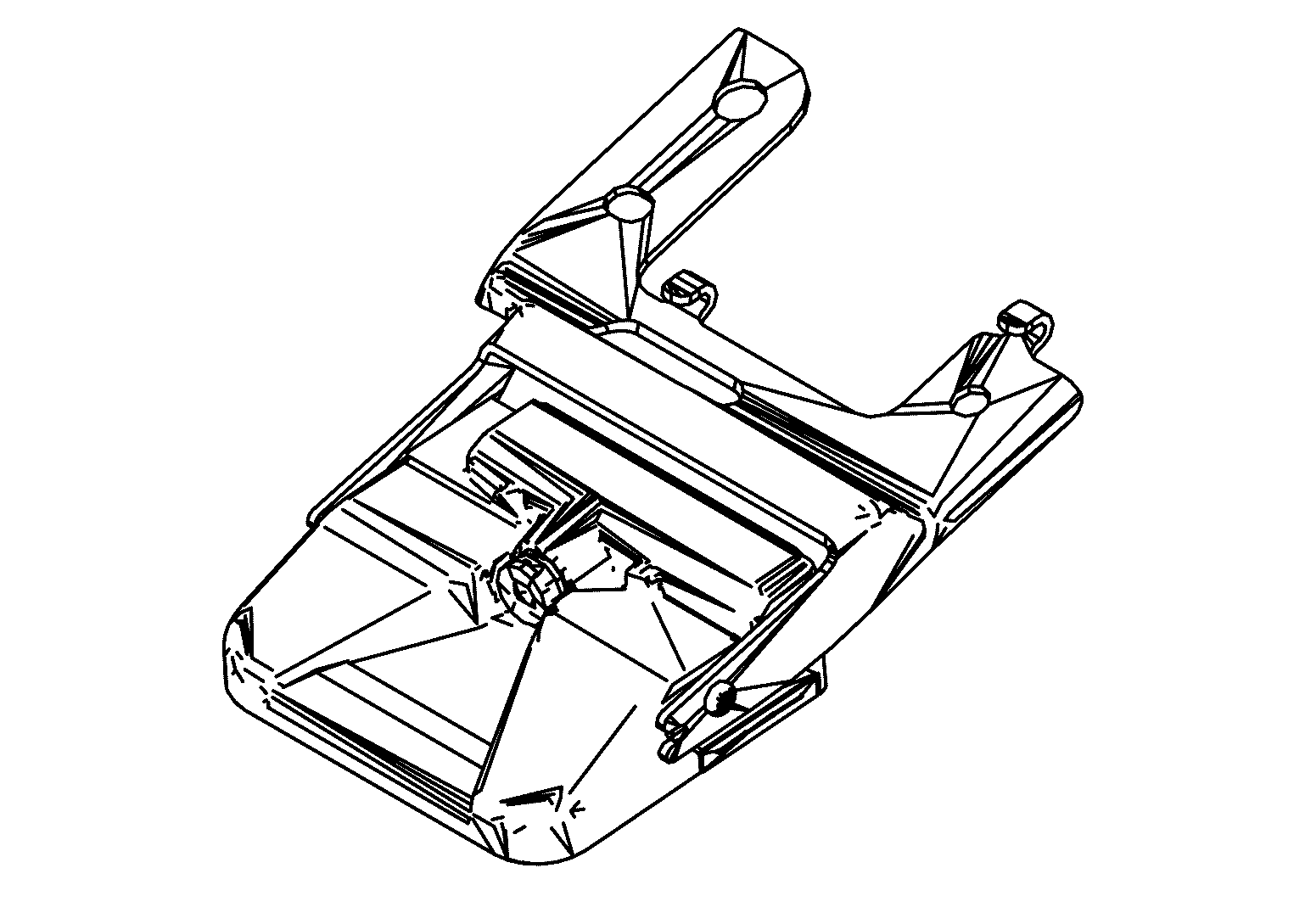

Lane Camera Unit 2 is located above the inside mirror and detects the lane marker in travel lane.
Courtesy of NISSAN NORTH AMERICA, INC.
Transmits lane marker signal to Chassis Control Module via chassis Communication.
