Precaution For Side Radar
- Never use the Side Radar removed from vehicle. Never disassemble or remodel.
- Never install a part that the radar irradiation range
is interfered with.

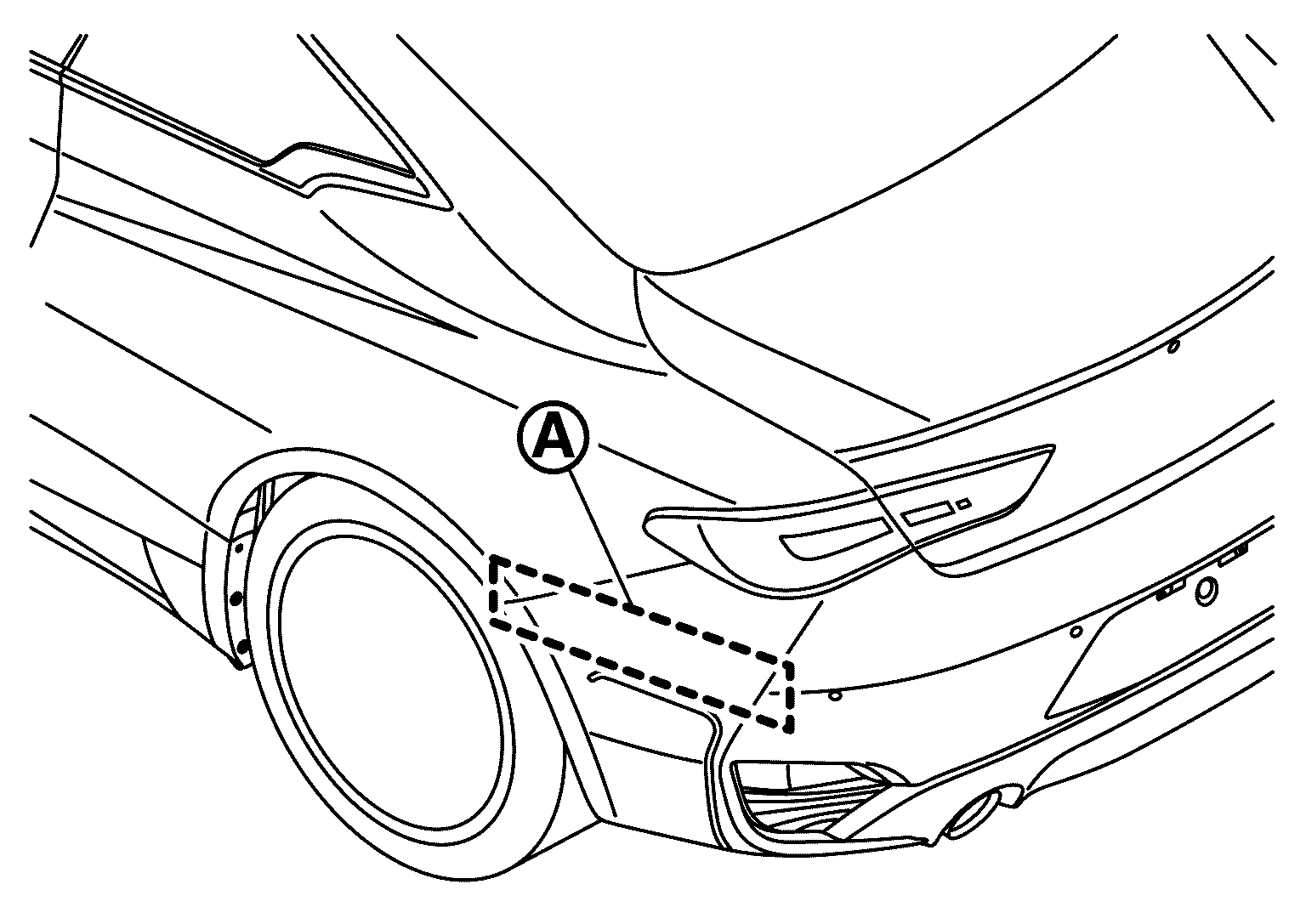

NOTE:This is radar irradiation range of Side Radar LH. It of Side Radar RH is symmetrically opposite of LH.
- If a part interferes with the radar irradiation range, then the following conditions are caused:
- The condition of Side Radar becomes equal to an unclean condition, and this makes it difficult to measure the distance from a vehicle in the adjacent lane.
- When it is impossible to measure the distance from a vehicle in the adjacent lane, the following functions stop and DTC is detected.
- Blind Spot Warning (BSW)
- Blind Spot Intervention
- Back-up Collision Intervention (BCI)
