Home >> Infiniti >> 2017 >> Q60 Base, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control System (ASCD) >> System Description >> System >> Circuit Diagram

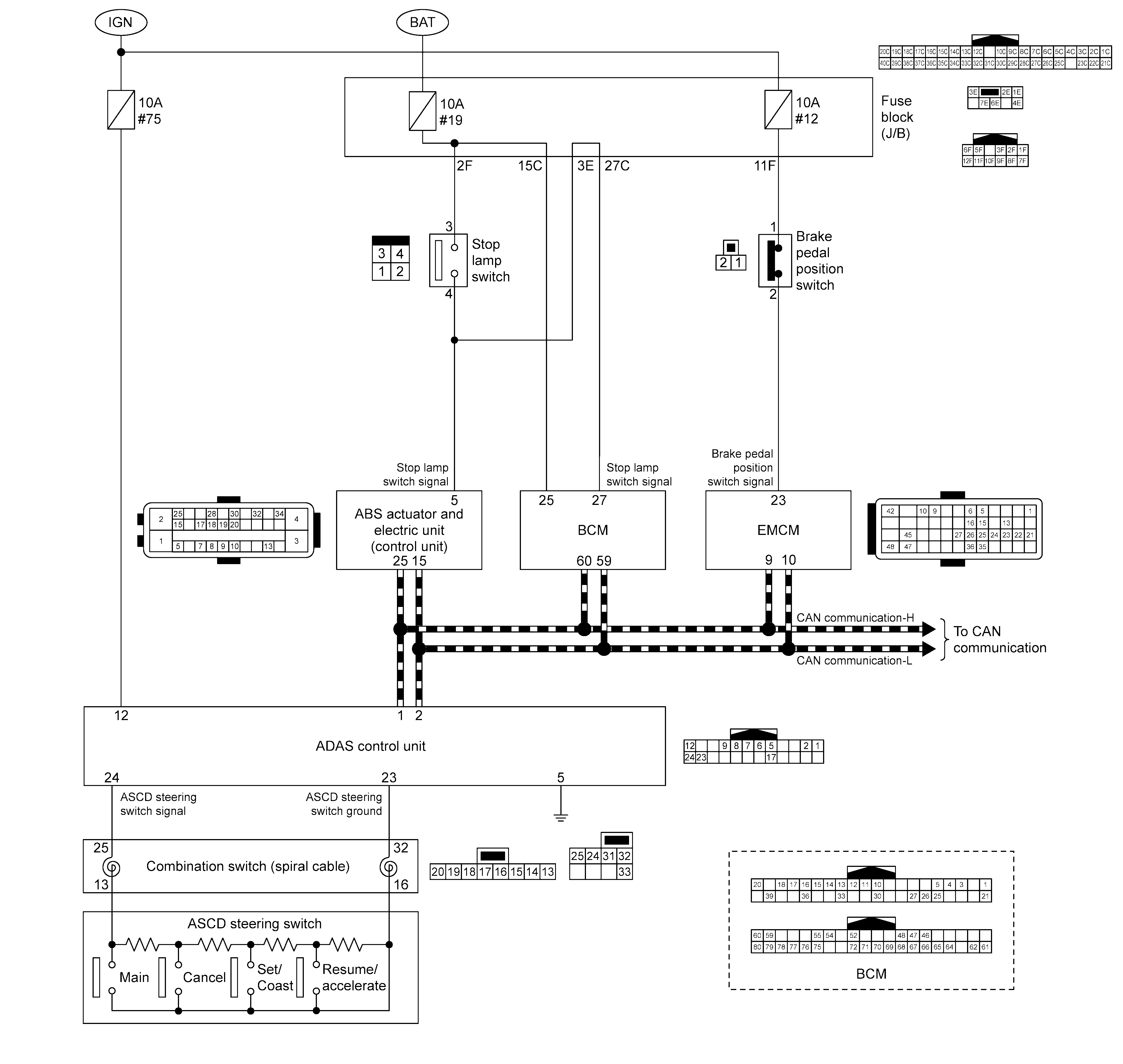

Circuit Diagram

GNSJSOIA2538GB-538

Courtesy of NISSAN NORTH AMERICA, INC.
