Circuit Diagram (Turbo Low Pressure Model)

WARNING: This page is about a different variant/trim than selected.
GNSJSBIB1394GB-394Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSBIB0467GB-467Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSBIB1397GB-397Courtesy of NISSAN NORTH AMERICA, INC.

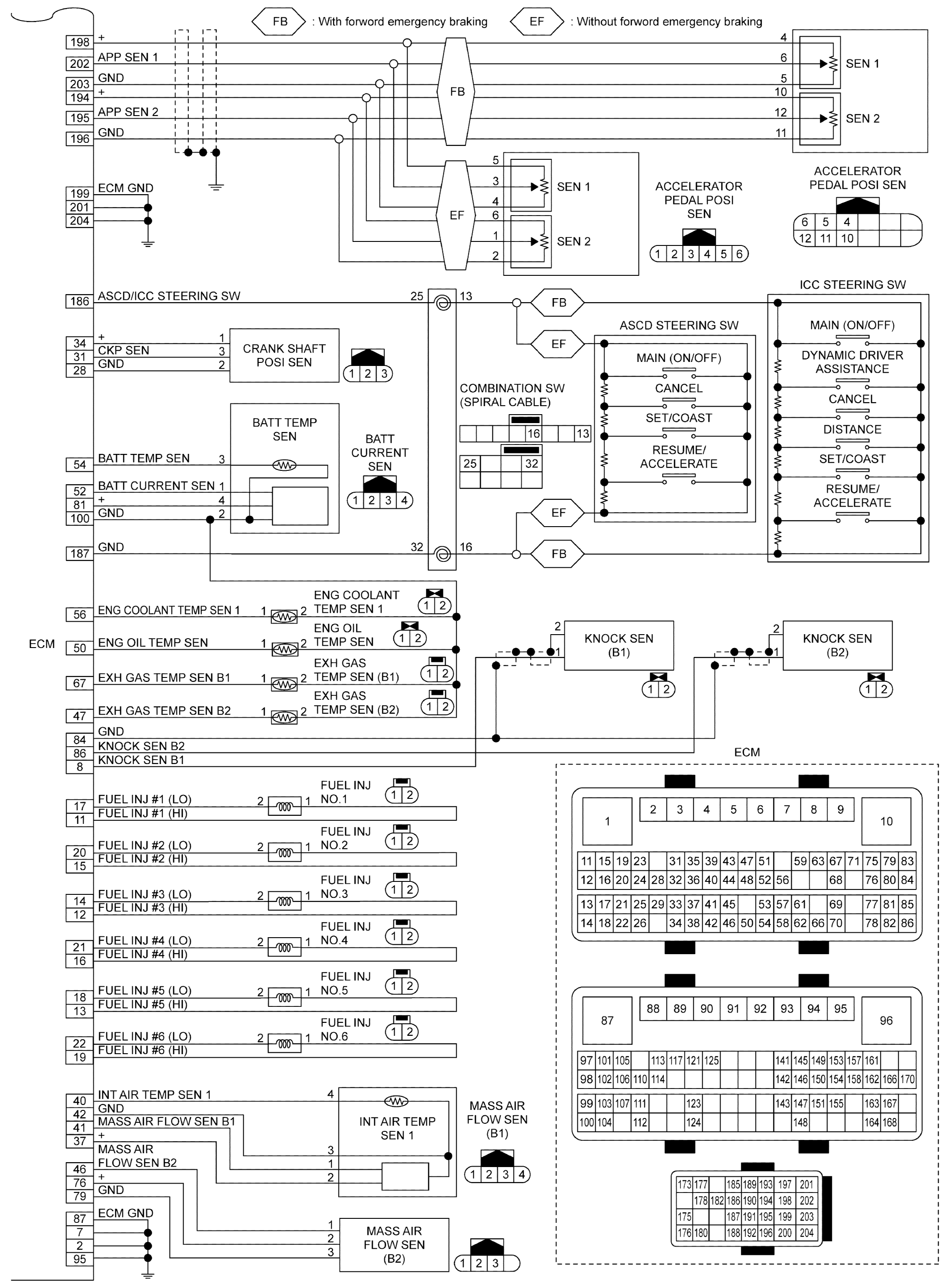

GNSJSBIB1395GB-395Courtesy of NISSAN NORTH AMERICA, INC.
