Home >> Infiniti >> 2017 >> Q50 Base, AWD >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 5 (Engine Control System (Introduction) (3.0L) (Except Hybrid)) >> System Description >> System >> Engine Control System >> Circuit Diagram (Turbo High Pressure Model) >> Except For MEXICO

Except For MEXICO

WARNING: This page is about a different variant/trim than selected.

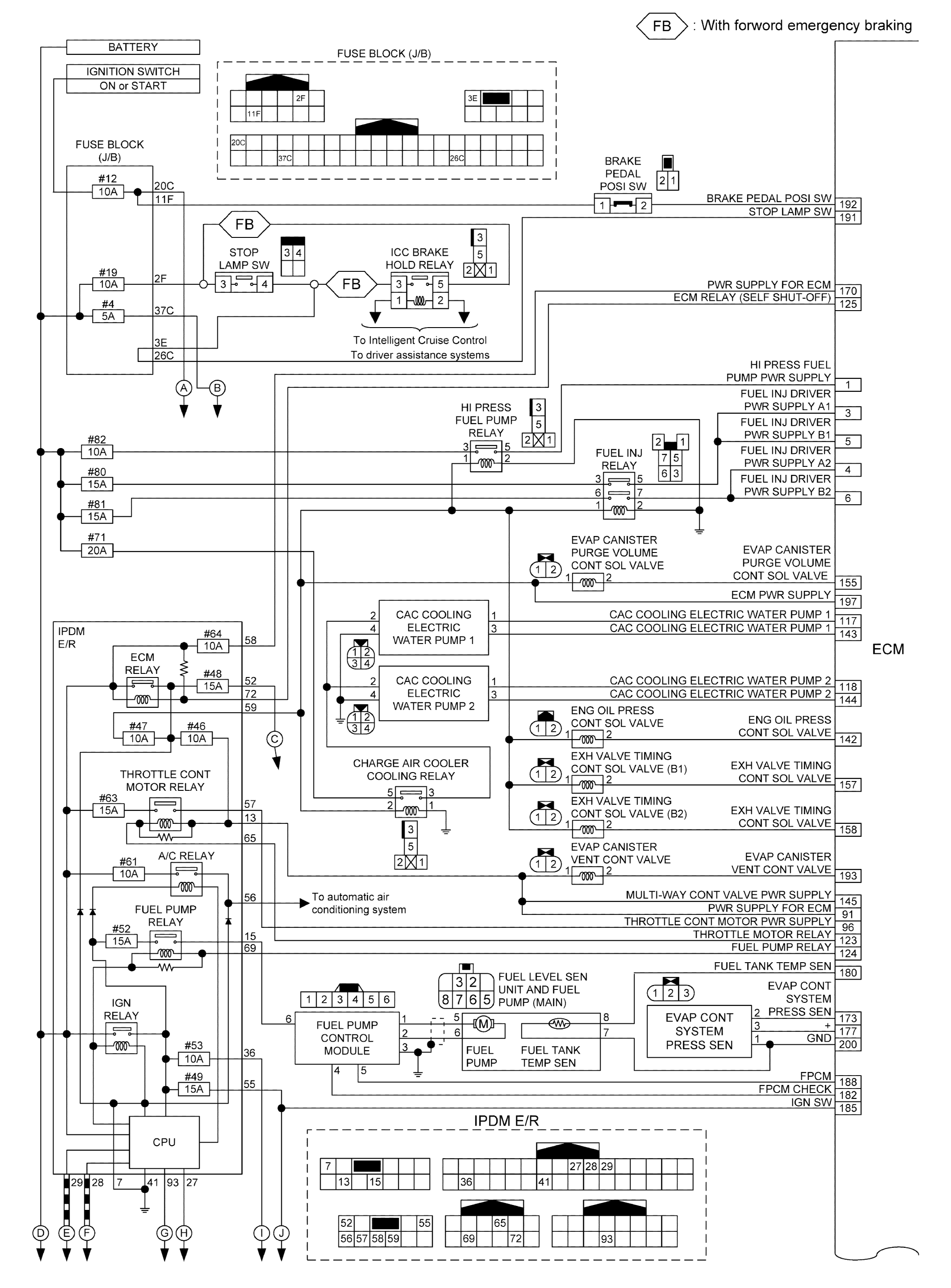

GNSJSBIB1392GB-392Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSBIB0184GB-184Courtesy of NISSAN NORTH AMERICA, INC.

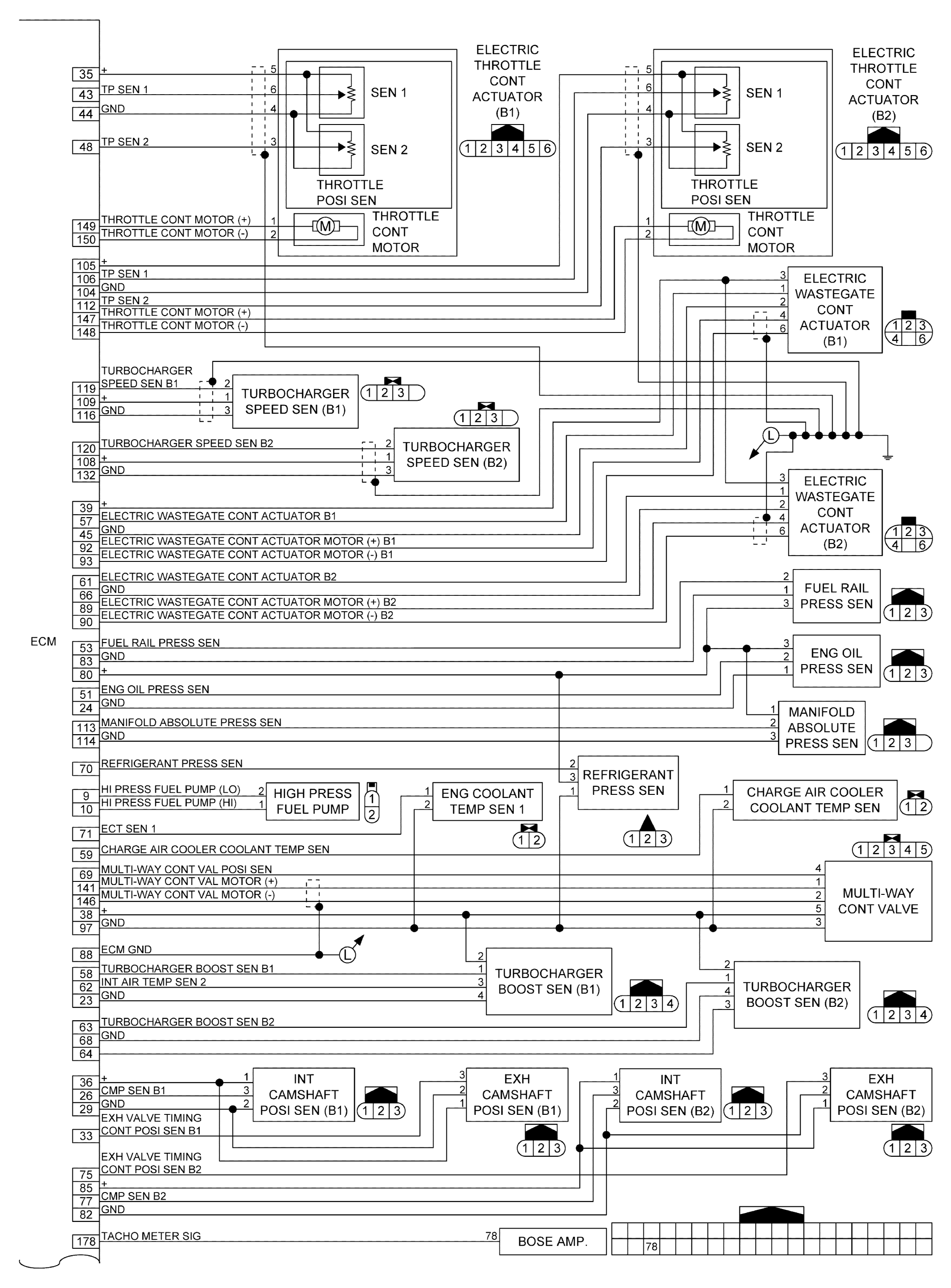

GNSJSBIB0491GB-491Courtesy of NISSAN NORTH AMERICA, INC.

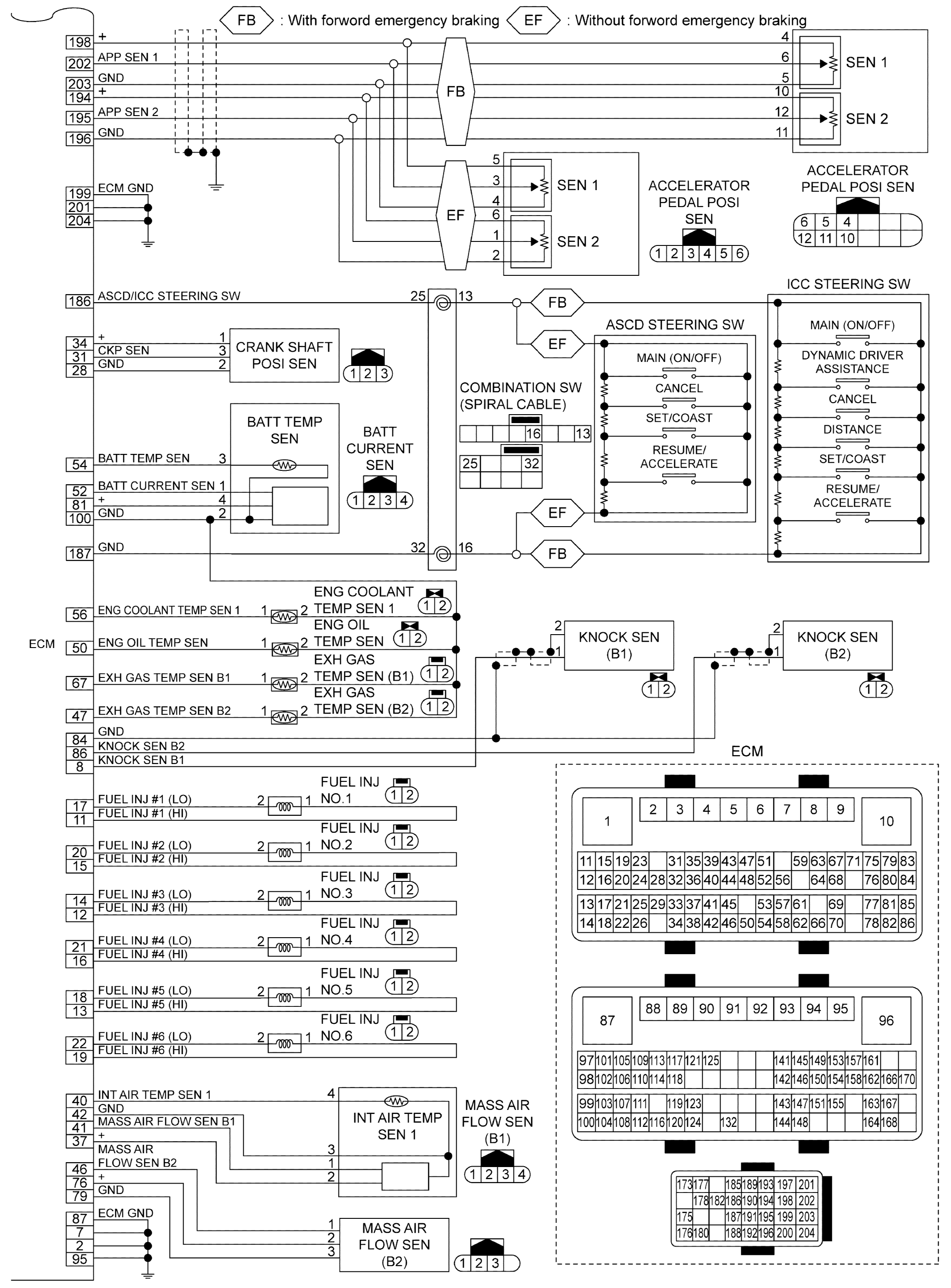

GNSJSBIB1393GB-393Courtesy of NISSAN NORTH AMERICA, INC.
