Switch Name And Function: PFCW/LDW/BSW

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

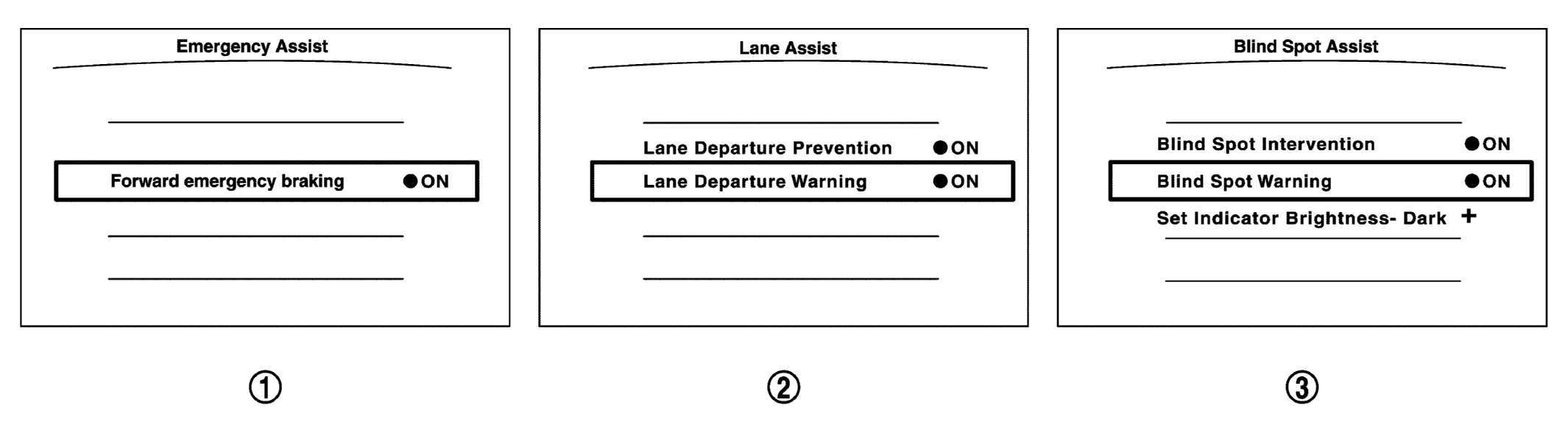

G09162669Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
WHITE-1 PFCW/FEB system setting screen
(Integral switch settings screen)		 The setting of PFCW/FEB system can be switched between ON and OFF
WHITE-2 LDW system setting screen
(Integral switch settings screen)		 The setting of LDW system can be switched between ON and OFF
WHITE-3 BSW system setting screen
(Integral switch settings screen)		 The setting of BSW system can be switched between ON and OFF
