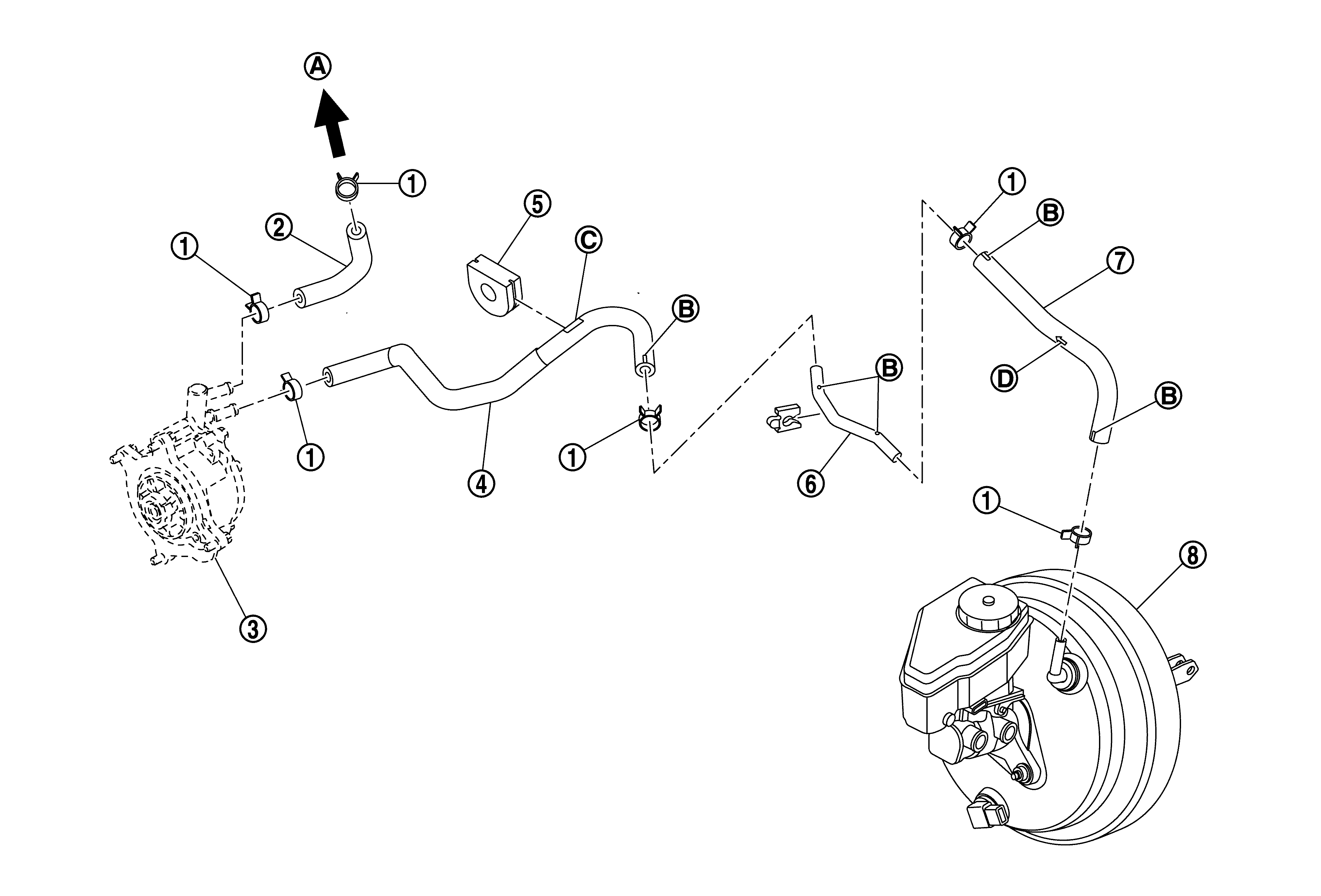

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Clamp |
|
Vacuum hose 1 |
|
Vacuum pump |
|
|
Vacuum hose 1 |
|
Grommet |
|
Vacuum piping |
|
|
Vacuum hose (built-in check valve) |
|
Brake booster |
||
|
|
To intake manifold collector position Refer to INTAKE MANIFOLD COLLECTOR : Exploded View . |
|
Paint mark |
|
Stamp indicating grommet installation position |
|
|
Stamp indicating engine direction |
||||
