2.0L Turbo Gasoline Engine

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

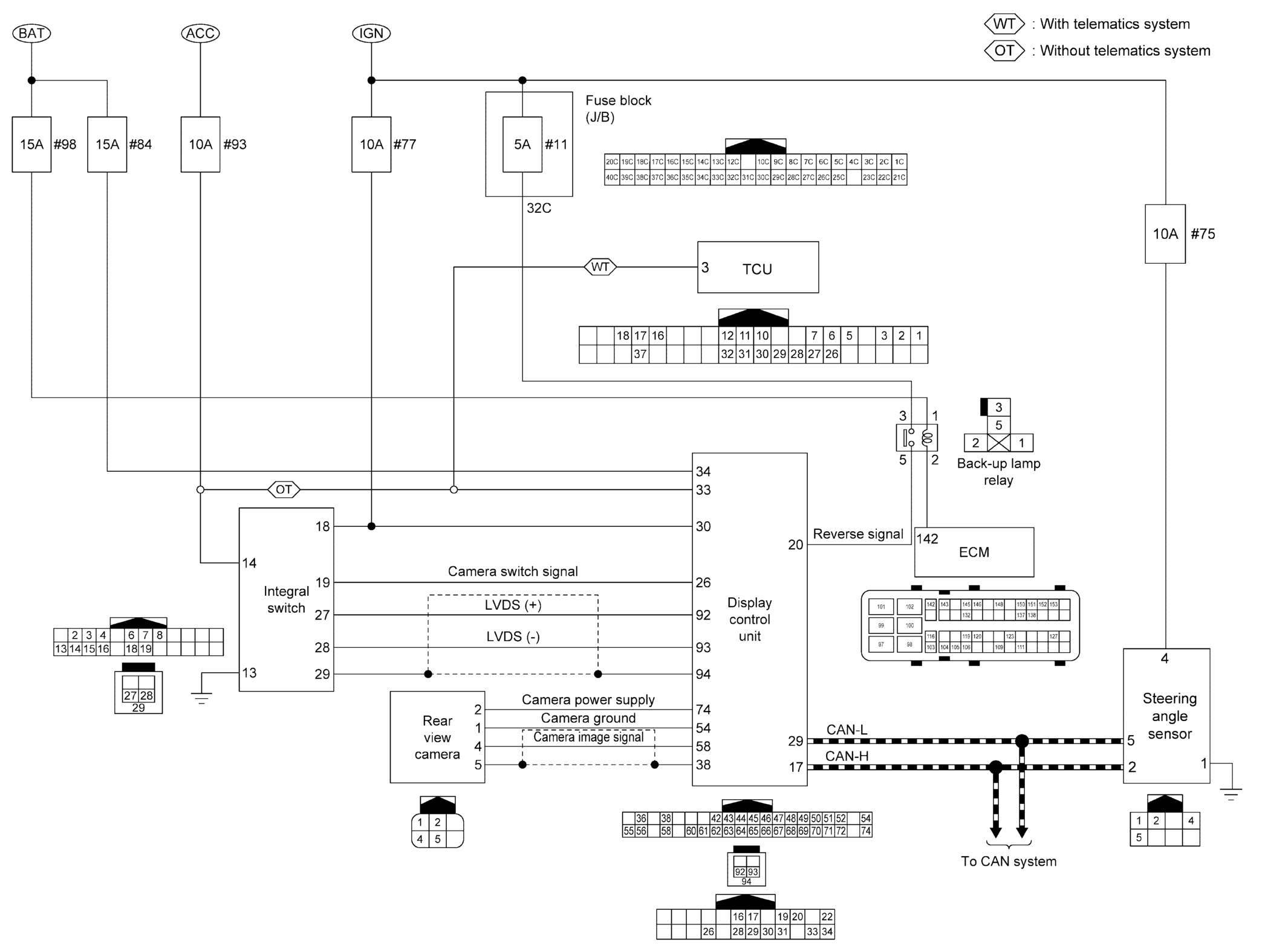

GNSJSNIB0559GB-559Courtesy of NISSAN NORTH AMERICA, INC.
