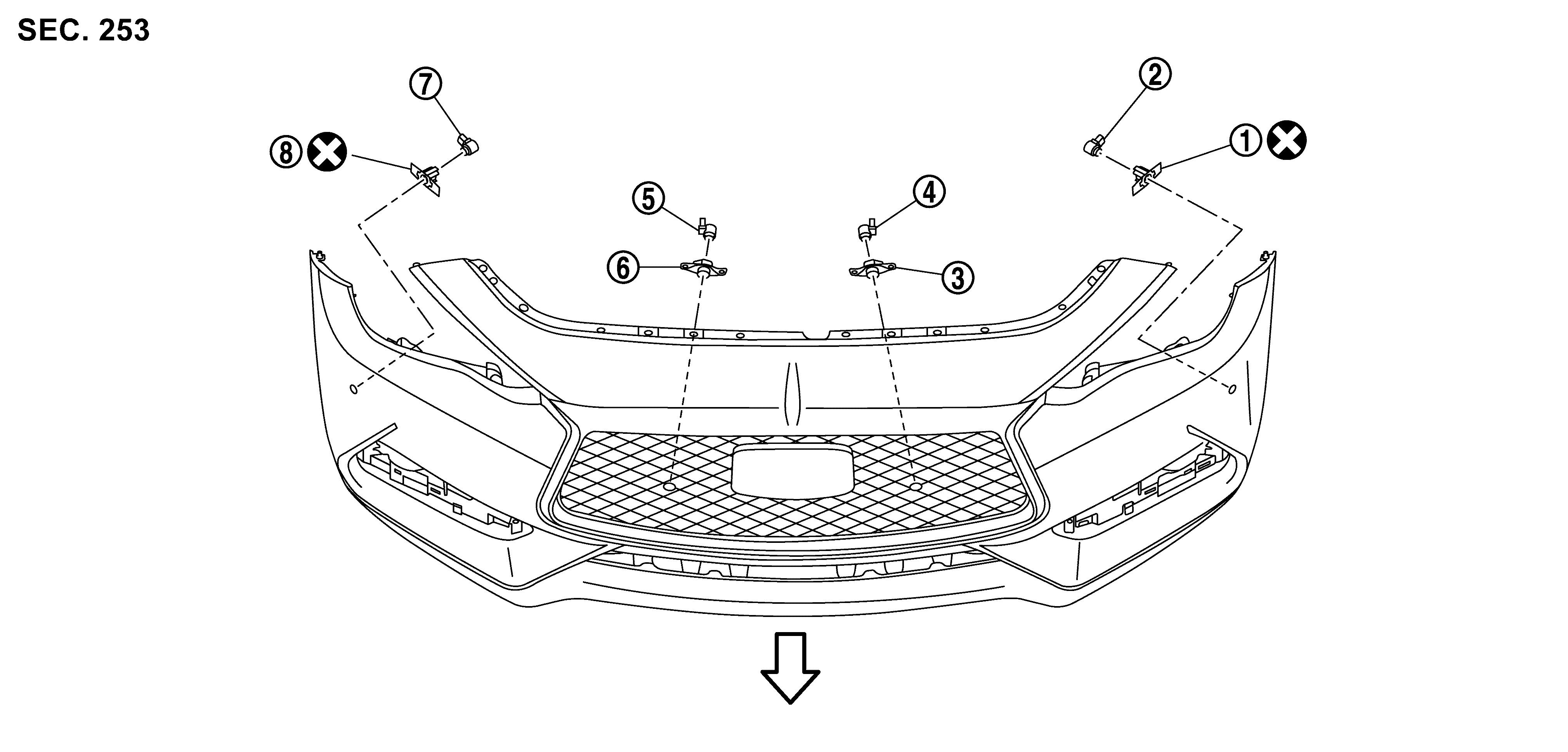

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Corner sensor finisher front LH
|
|
Corner sensor front LH
|
|
Center sensor finisher front LH
|
|
|
Center sensor front LH
|
|
Center sensor finisher front RH
|
|
Center sensor finisher front RH
|
|
|
Corner sensor front RH
|
|
Corner sensor finisher front RH
|
|
|
:Always replace after every disassembly.
|
|
|
: Vehicle front
|
