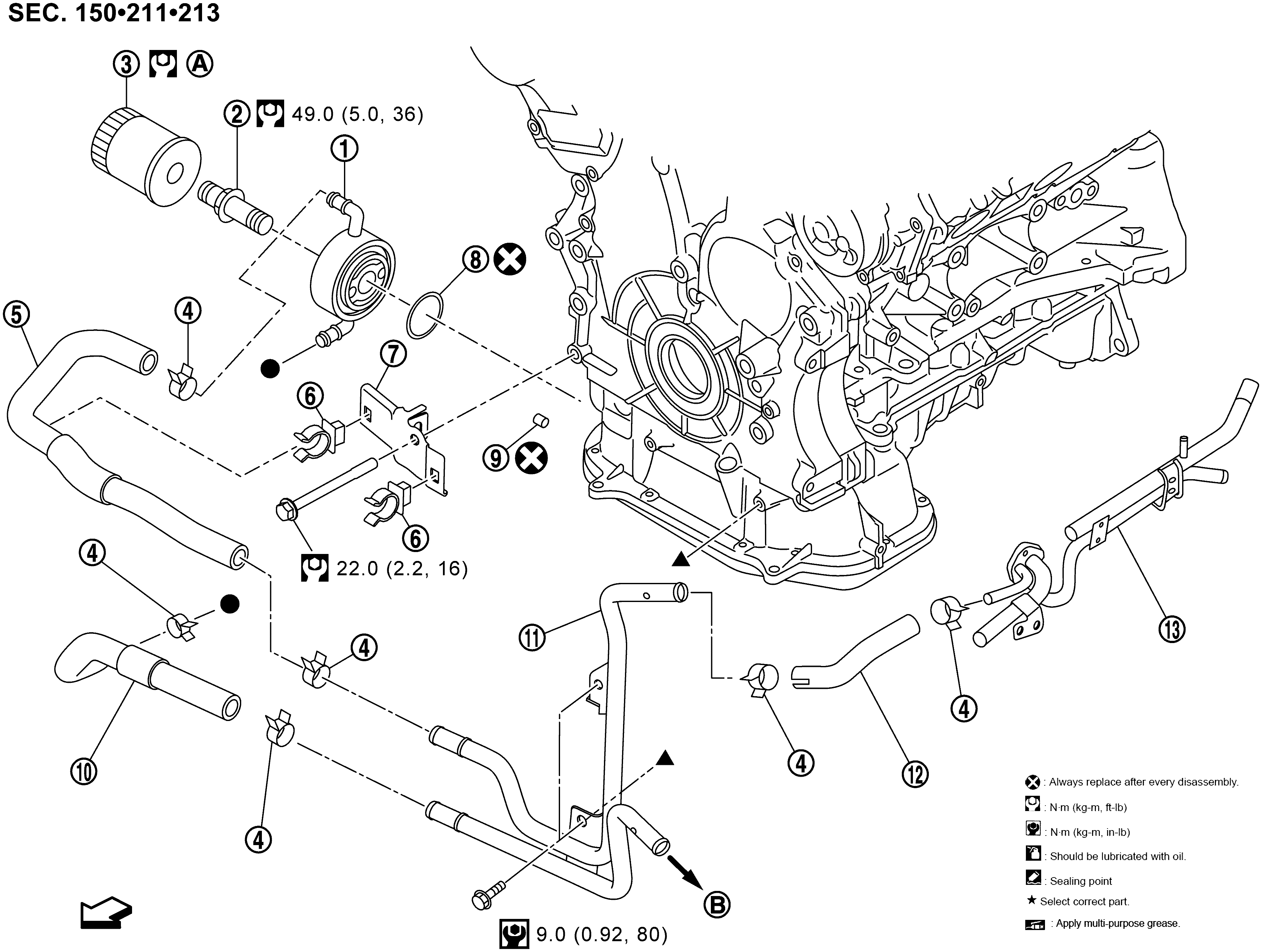

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

	Oil cooler	Connecting bolt	Oil filter
	Clamp	Water hose	Clamp
	Bracket	O-ring	Relief valve
	Water hose	Water pipe	Water hose
	Heater pipe
	Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION	To A/T fluid warmer
	: Engine front
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
	: Always replace after every disassembly.
, : Indicates that the parts is connected at points with same symbol in actual vehicle.

CAUTION:

Do not reuse O-rings.
