Washer Level Switch Connector End View (E54)

Connector Types:  Z02FBR

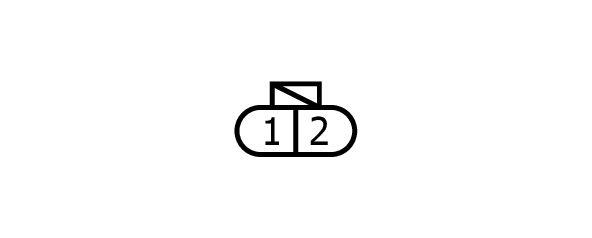

Fig 1: Terminal-side
GNSW30227Courtesy of NISSAN NORTH AMERICA

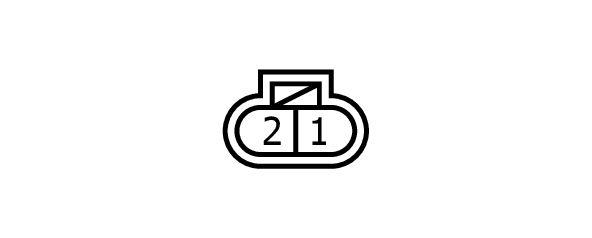

Fig 2: Harness-side
GNSW30268Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 BR -
2 B -
