Transfer Rotary Position Sensor Connector End View (F41)

Connector Types:  RH03FGY

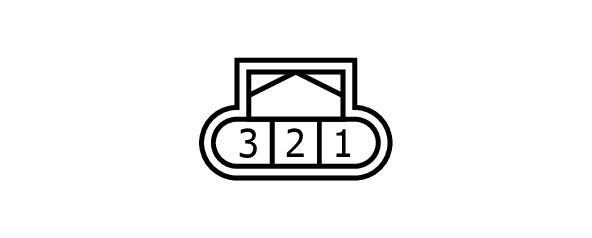

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

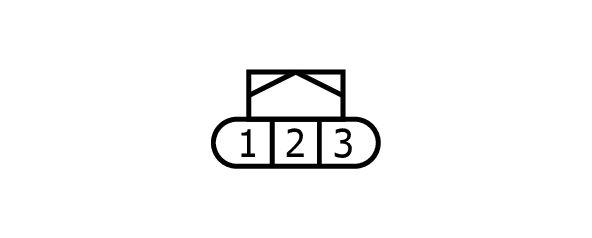

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	BR/Y	-
2	LG	-
3	P/B	-
