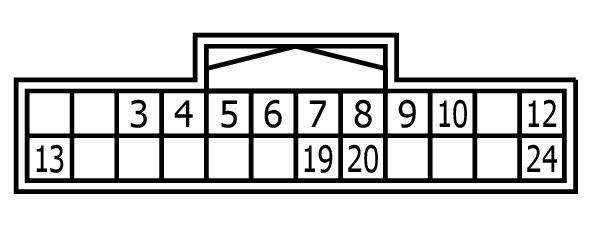

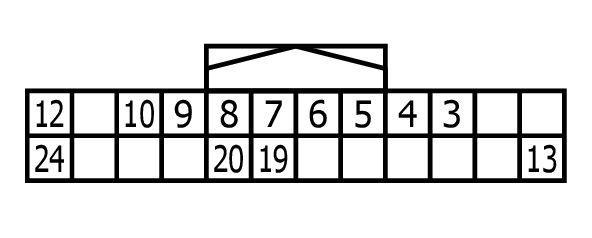

Sonar Control Unit Connector End View (M47)
Connector Types: TH24FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 3 | W | CORNER SENSOR FRONT LH |
| 4 | R | CORNER SENSOR FRONT RH |
| 5 | W | CORNER SENSOR REAR LH |
| 6 | R | CORNER SENSOR REAR RH |
| 7 | G | CENTER SENSOR REAR LH |
| 8 | Y | CENTER SENSOR REAR RH |
| 9 | G | CENTER SENSOR FRONT LH |
| 10 | Y | CENTER SENSOR FRONT RH |
| 12 | B | SENSOR GND |
| 13 | GR/L | IGN |
| 19 | L | CAN-H |
| 20 | R | CAN-L [Without backup collision intervention] |
| 20 | Y | CAN-L [With backup collision intervention] |
| 24 | B | GND |
