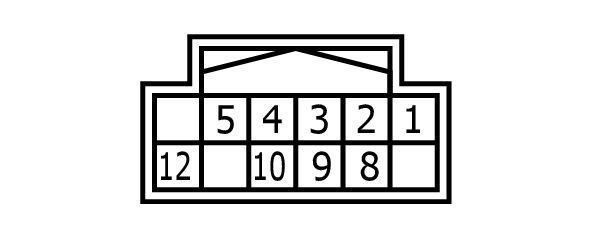

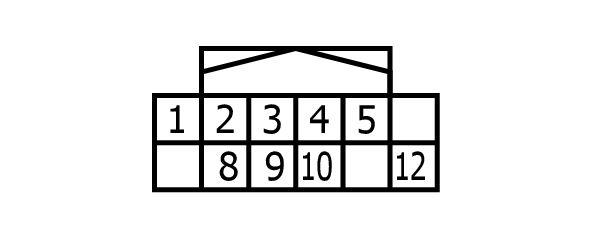

Shift Position Switch Connector End View (M281)
Connector Types:
TH12FW
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
G |
M |
| 2 |
BR |
P |
| 3 |
W/B |
R |
| 4 |
O |
D |
| 5 |
W/B |
N |
| 8 |
GR |
GND |
| 9 |
Y |
ILL |
| 10 |
B |
MT |
| 12 |
W |
AT |
