Refrigerant Pressure Sensor Connector End View (E77)

Connector Types:  RK03FB

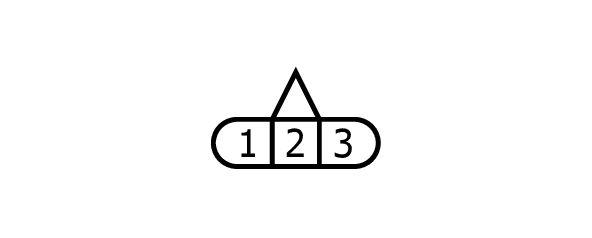

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

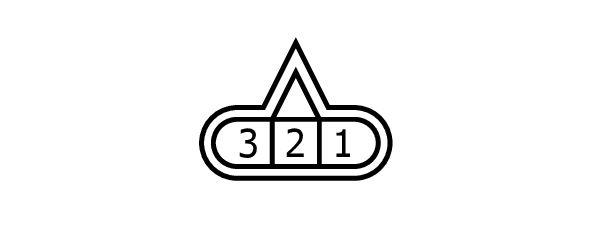

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	SB	-
2	O/B	-
3	W/L	-
