Rear A/C Control Connector End View (M41)

Connector Types:  TH12FW-NH

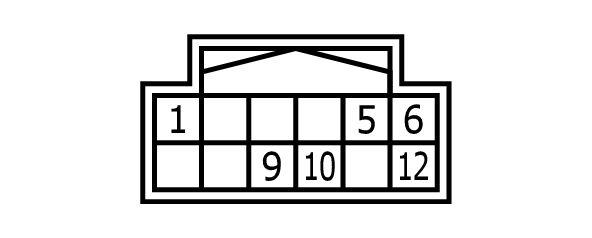

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

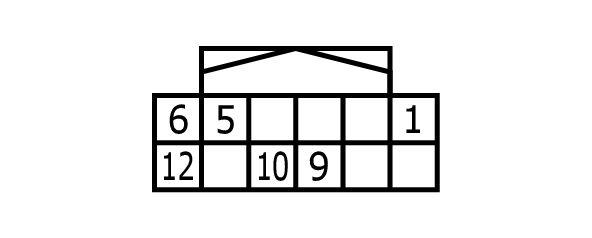

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	B	GND
5	L/W	ILL+
6	B/O	ILL-
9	W	RR CONT RX
10	O/L	RR CONT TX
12	GR/L	IGN
