Mass Air Flow Sensor Connector End View (F31)

Connector Types:  RH06FB

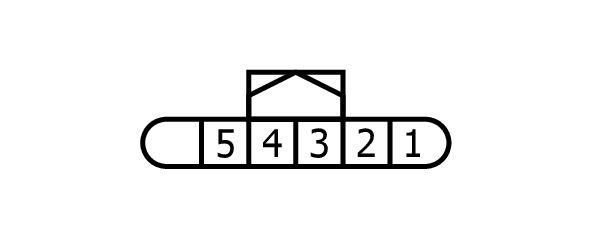

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

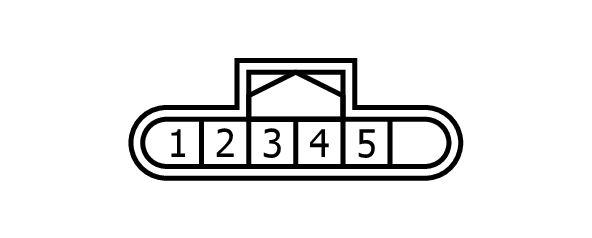

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	LG	-
2	G/O	-
3	BR/W	-
4	LG	-
5	GR	-
