Fuel Level Sensor Unit And Fuel Pump Connector End View (C5)

Connector Types:  E05FGY-RS

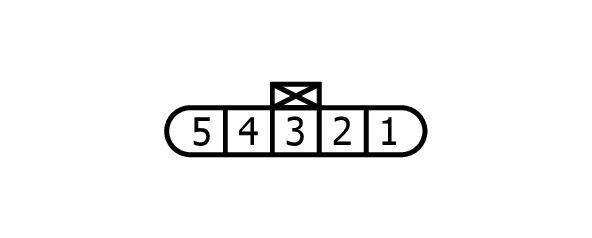

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

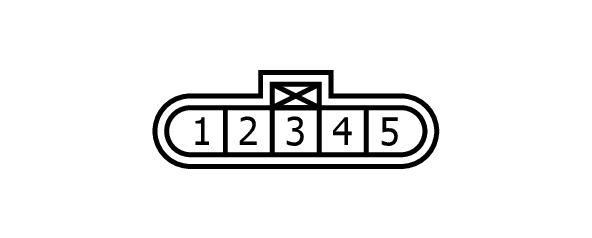

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	G/Y	-
2	BR/Y	-
3	G/R	-
4	V/W	-
5	Y/V	-
