Front Power Socket Connector End View (M80)

Connector Types:  P02FB-Z

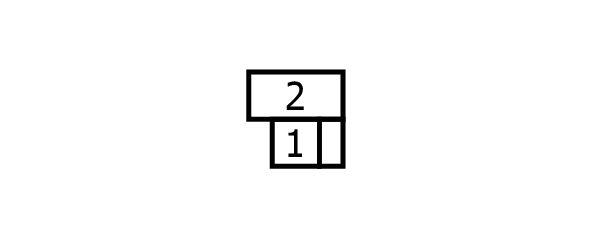

Fig 1: Terminal-side
GNSW30258Courtesy of NISSAN NORTH AMERICA

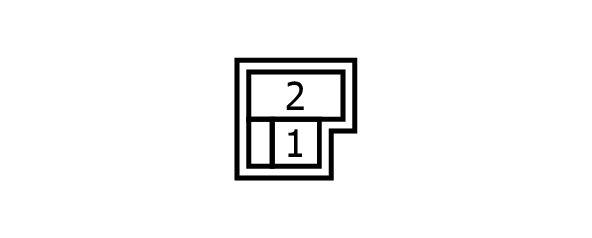

Fig 2: Harness-side
GNSW30031Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 L/W -
2 B -
