Front Height Sensor Connector End View (E208)

Connector Types:  RH03FB

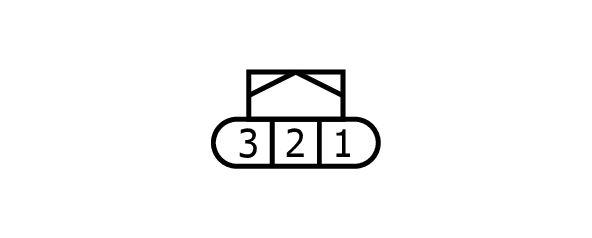

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

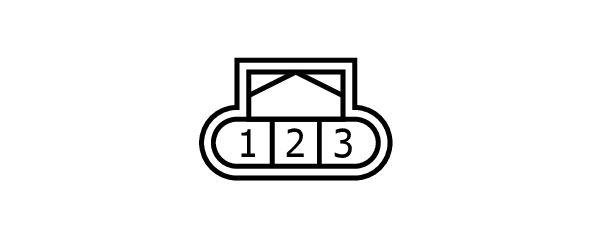

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	L/Y	HSV-F
2	V	HS-F
3	B/W	HSG-F
