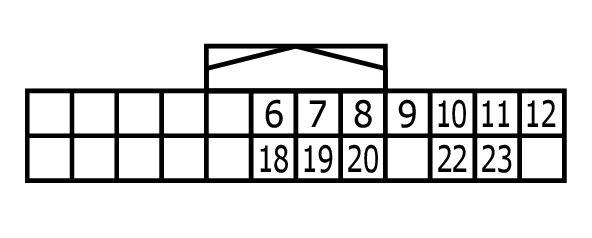

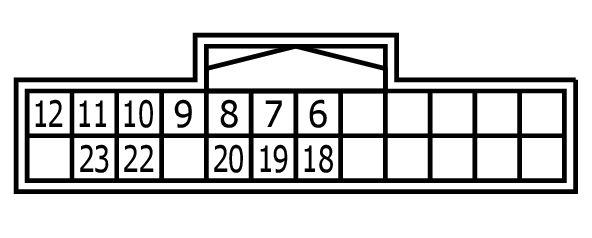

Front Display Unit Connector End View (M215)
Connector Types: TH24FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 6 | SHIELD | SHIELD |
| 7 | SHIELD | SHIELD |
| 8 | W | CAMERA IMAGE SIGNAL |
| 9 | Y/L | COMM (DISP-CONT) |
| 10 | Y/G | COMM (CONT-DISP) |
| 11 | Y/R | BATTERY POWER SUPPLY |
| 12 | B | GND |
| 18 | R | COMPOSITE IMAGE SIGNAL |
| 19 | W | COMPOSITE IMAGE SIGNAL GND |
| 20 | W/B | COMPOSITE IMAGE SYNC SIGNAL |
| 22 | SHIELD | SHIELD |
| 23 | V | ACC POWER SUPPLY |
