Av Control Unit Connector End View (M213)

Connector Types:  TH16FW-NH

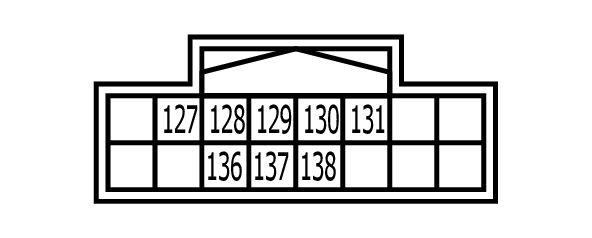

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
127	G	VOICE GUIDANCE SIGNAL (+)
128	V	VOICE GUIDANCE SIGNAL (-)
129	R	SOUND SIGNAL WOOFER (+)
130	L	SOUND SIGNAL CENTER SPEAKER (+)
131	SHIELD	SHIELD
136	SHIELD	SHIELD
137	W	SOUND SIGNAL WOOFER (-)
138	P	SOUND SIGNAL CENTER SPEAKER (-)
