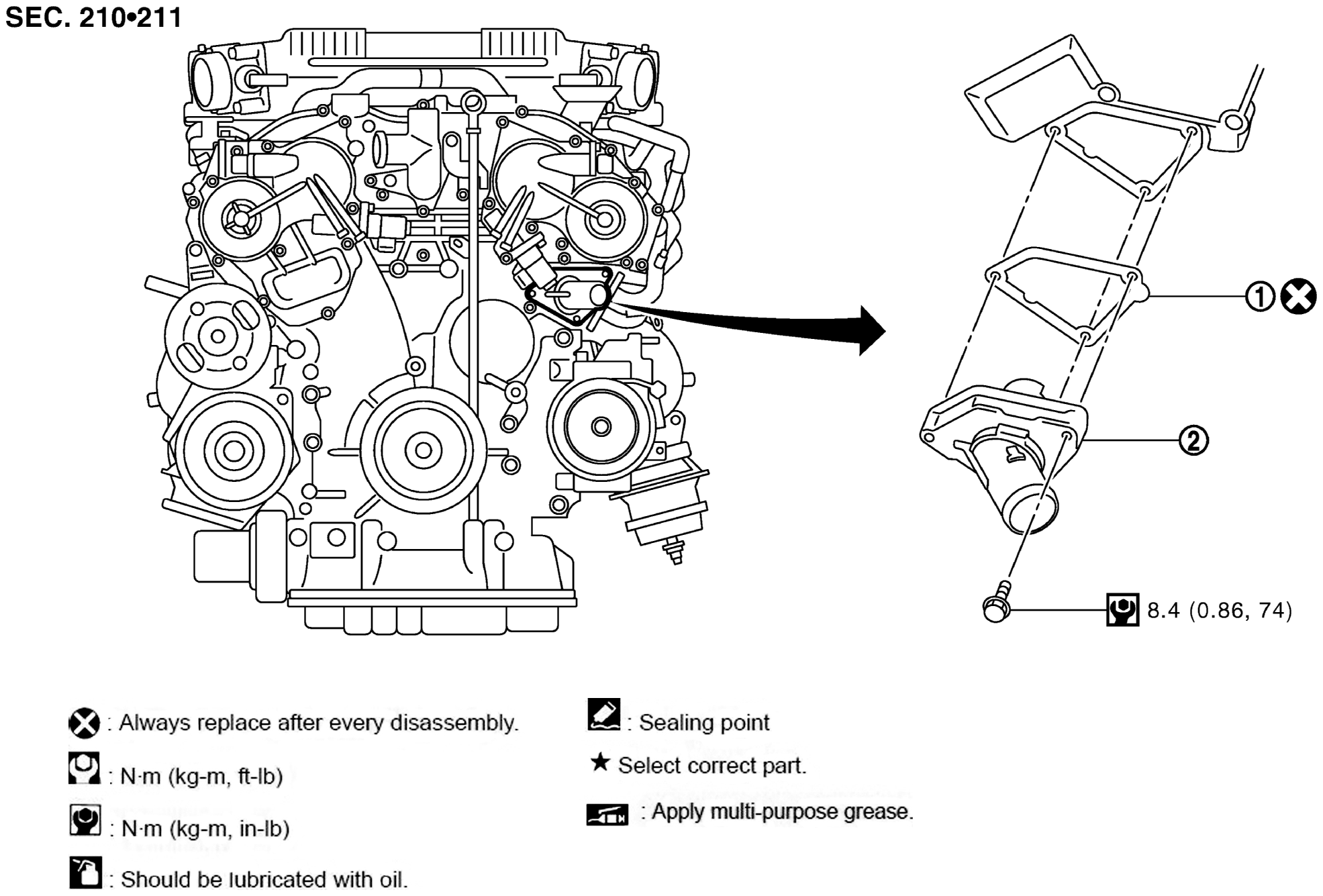

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Gasket | 2. | Water inlet and thermostat assembly | ||
| Refer to COMPONENTS for symbols in the illustration. | |||||
