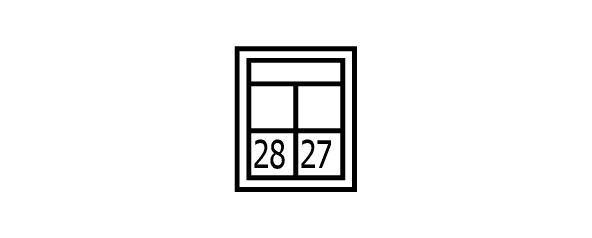

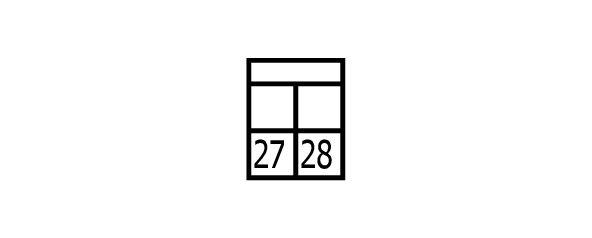

Front Display Unit Connector End View (M322)
Connector Types:
GT17HNN-4DS-HU
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 27 |
- |
RGB DIGITAL IMAGE SIGNAL (-) |
| 28 |
- |
RGB DIGITAL IMAGE SIGNAL (+) |
