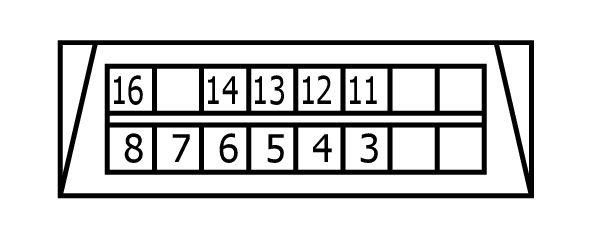

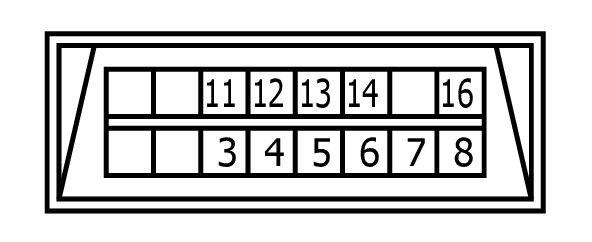

Data Link Connector Connector End View (M4)
Connector Types:
BD16FW
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 3 |
LG |
- |
| 4 |
B |
- |
| 5 |
B |
- |
| 6 |
L |
- |
| 7 |
SB |
- |
| 8 |
GR |
- |
| 11 |
SB |
- |
| 12 |
R |
- |
| 13 |
L |
- |
| 14 |
P |
- |
| 16 |
Y |
- |
