Combination Switch Connector End View (M53)

Connector Types:  NS02FW-CS

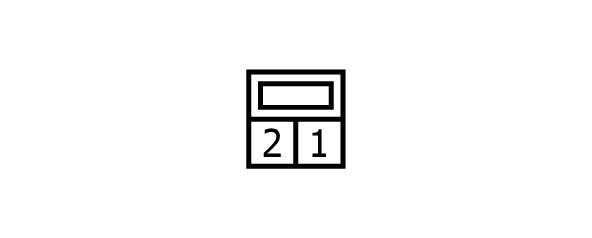

Fig 1: Terminal-side
GNSW30760Courtesy of NISSAN NORTH AMERICA

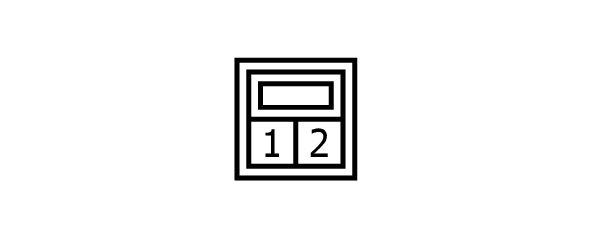

Fig 2: Harness-side
GNSW30479Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 BR -
2 B -
