SUNLOAD Sensor Connector End View (M46)

Connector Types:  K02FB

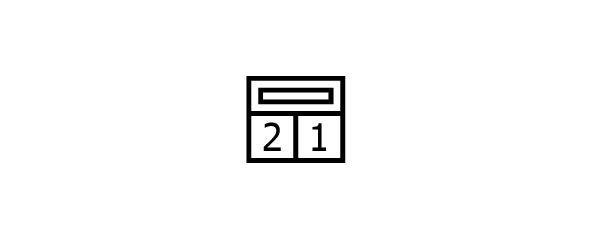

Fig 1: Terminal-side
GNSW28834Courtesy of NISSAN NORTH AMERICA

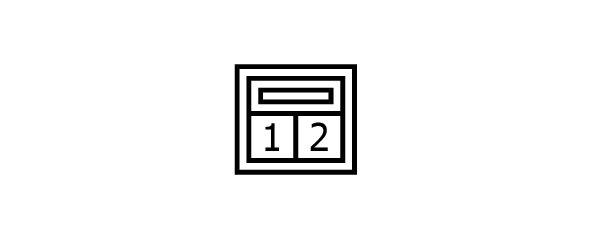

Fig 2: Harness-side
GNSW28724Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 BG SUNLOAD SENSOR SIGNAL
2 SB SENSOR GROUND
