Push-Button Ignition Switch Connector End View (M50)

Connector Types:  TK08FBR

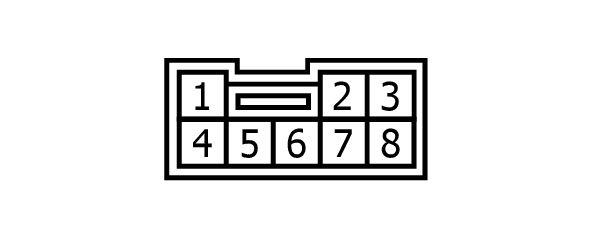

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

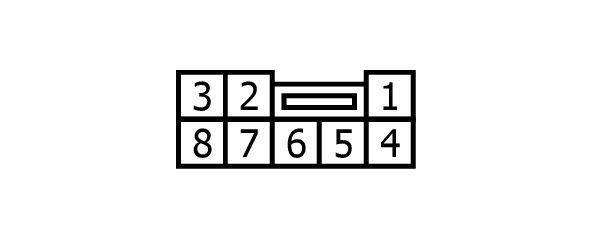

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	B	-
2	R	-
3	BG	-
4	SB	-
5	GR	-
6	Y	-
7	V	-
8	P	-
