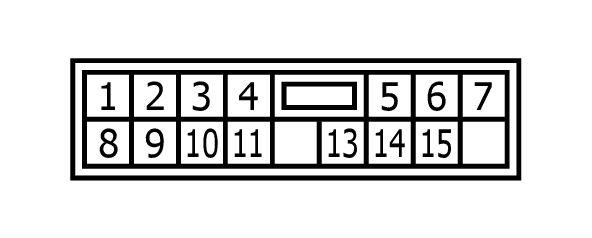

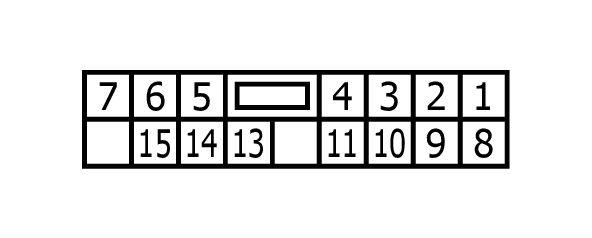

Power Window Main Switch Connector End View (D8)
Connector Types: NS16FW-CS
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | W | MOTOR UP RL |
| 2 | LG | ENCODER GND |
| 3 | GR | MOTOR DOWN RL |
| 4 | V | DOOR KEY CYLINDER SW LOCK |
| 5 | SB | MOTOR DOWN RR |
| 6 | Y | DOOR KEY CYLINDER SW UNLOCK |
| 7 | BR | MOTOR UP RR |
| 8 | L | MOTOR UP DR |
| 9 | W | ENCODER SIG 2 |
| 10 | O | IGN |
| 11 | G | MOTOR DOWN DR |
| 13 | P | ENCODER SIG 1 |
| 14 | V | SERIAL LINK |
| 15 | W | ENCODER PWR |
