IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E8)

Connector Types:  NS08FW-CS

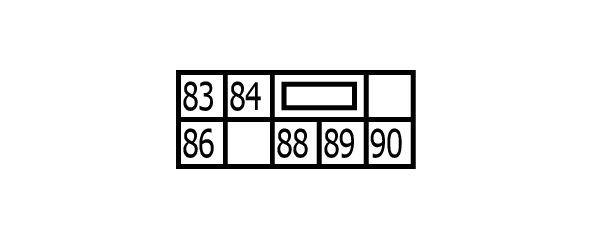

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

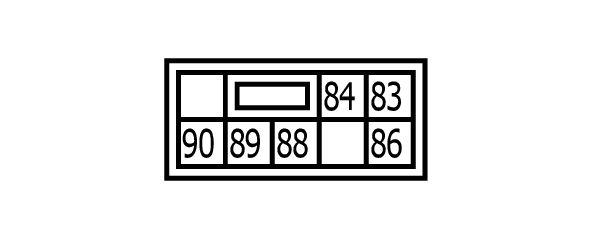

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
83	R	-
84	P	-
86	W	-
88	G	-
89	BR	-
90	Y	-
