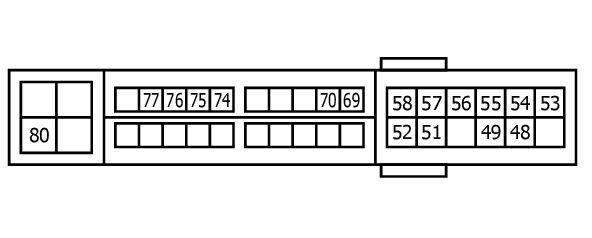

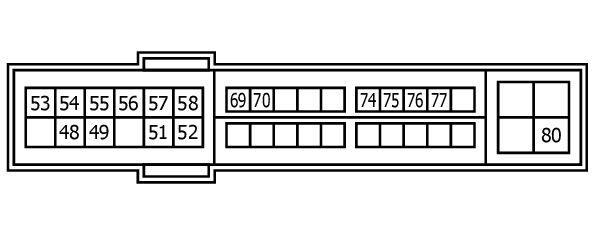

IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E7)
Connector Types: TH20FW-CS12-M4
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 48 | L | - |
| 49 | SB | - [With VQ engine] |
| 49 | W | - [With VK engine] |
| 51 | G | - |
| 52 | W | - |
| 53 | W | - |
| 54 | R | - |
| 55 | BR | - |
| 56 | BG | - [With VK engine] |
| 56 | V | - [With VQ engine] |
| 57 | LG | - |
| 58 | Y | - |
| 69 | W | - |
| 70 | BG | - |
| 74 | G | - |
| 75 | Y | - |
| 76 | P | - [With VK engine] |
| 76 | V | - [With VQ engine] |
| 77 | B | - [With VK engine] |
| 77 | L | - [With VQ engine] |
| 80 | W | - |
