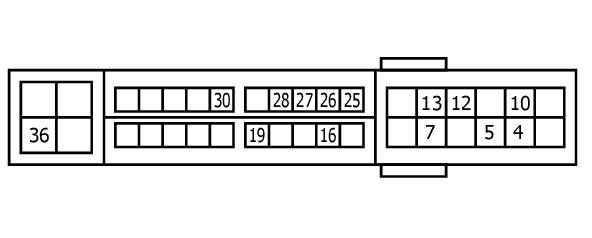

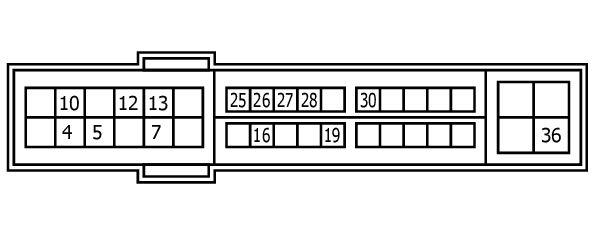

IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E5)
Connector Types:
TH20FW-CS12-M4-1V
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 4 |
V |
- |
| 5 |
L |
- |
| 7 |
R |
- |
| 10 |
SB |
- |
| 12 |
B |
- |
| 13 |
Y |
- |
| 16 |
LG |
- |
| 19 |
W |
- |
| 25 |
G |
- |
| 26 |
R |
- |
| 27 |
Y |
- |
| 28 |
BG |
- |
| 30 |
GR |
- |
| 36 |
G |
- |
