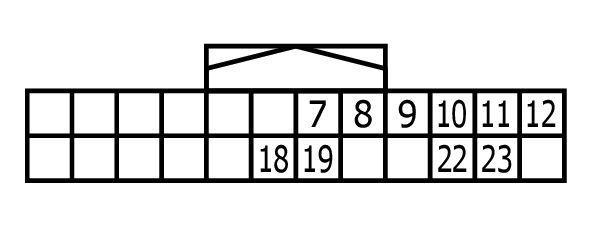

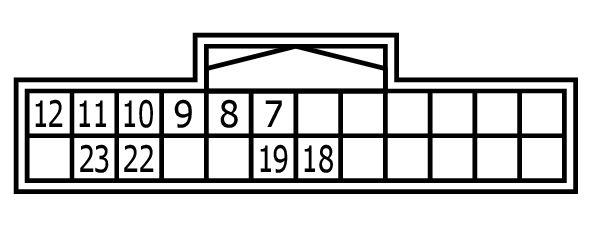

Front Display Unit Connector End View (M195)
Connector Types:
TH24FW-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 7 |
SHIELD |
SHIELD |
| 8 |
W |
CAMERA IMAGE SIGNAL |
| 9 |
G |
COMM (DISP->CONT) |
| 10 |
R |
COMM (CONT->DISP) |
| 11 |
P |
BATTERY |
| 12 |
B |
GROUND |
| 18 |
R |
COMPOSITE IMAGE SIGNAL |
| 19 |
B |
COMPOSITE IMAGE SIGNAL GND |
| 22 |
B |
SHIELD |
| 23 |
BG |
ACC |
