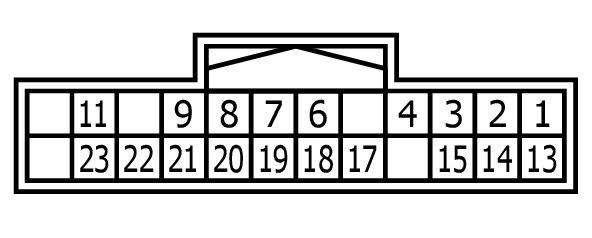

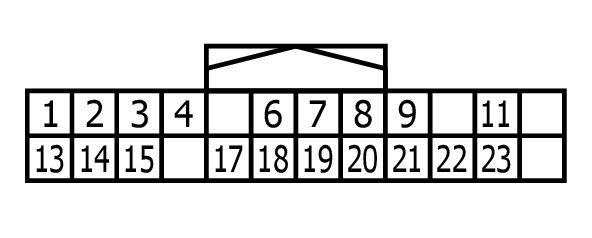

Front Display Unit Connector End View (M194)
Connector Types: TH24FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | B | GROUND |
| 2 | Y | INVERTER VCC |
| 3 | BG | SIGNAL VCC |
| 4 | BG | COMPOSITE IMAGE SIGNAL GND |
| 6 | W | RGB (G: GREEN) SIGNAL |
| 7 | SHIELD | SHIELD |
| 8 | R | HP |
| 9 | B | RGB AREA (YS) SIGNAL |
| 11 | Y | COMM (CONT->DISP) |
| 13 | BR | INVERTER GND |
| 14 | LG | SIGNAL GND |
| 15 | SB | COMPOSITE IMAGE SIGNAL |
| 17 | B | RGB (R: RED) SIGNAL |
| 18 | R | RGB (B: BLUE) SIGNAL |
| 19 | G | RGB SYNC SIGNAL |
| 20 | W | VP |
| 21 | SHIELD | SHIELD |
| 22 | BR | COMM (DISP->CONT) |
| 23 | SB | SHIELD |
