Engine Oil Temperature Sensor Connector End View (F38)

Connector Types:  E02FGY-RS

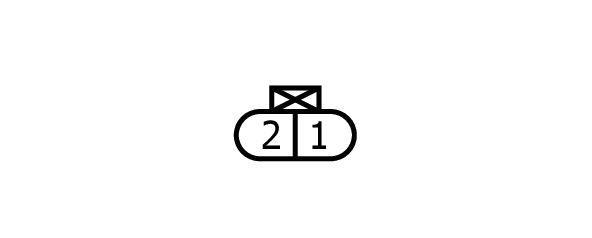

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

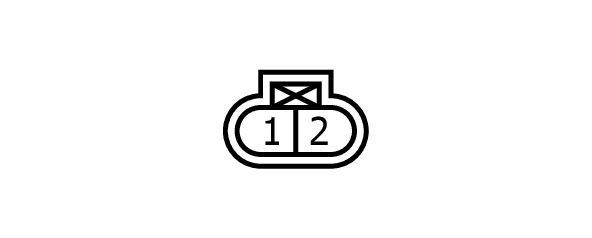

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	G	- [With VQ engine]
1	R	- [With VK engine]
2	B	- [With VQ engine]
2	V	- [With VK engine]
