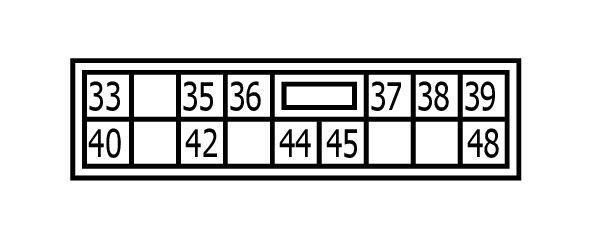

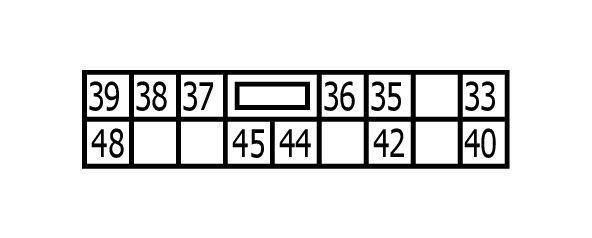

Driver Seat Control Unit Connector End View (B452)
Connector Types: NS16FW-CS
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 33 | R | BAT (C/B) |
| 35 | W/R | SLIDING MOTOR (FORWARD) |
| 36 | G/Y | RECLINING MOTOR (FORWARD) |
| 37 | G/W | FRONT LIFTING MOTOR (DOWNWARD) |
| 38 | L/Y | REAR LIFTING MOTOR (UPWARD) |
| 39 | R/B | REAR LIFTING MOTOR (DOWNWARD) |
| 40 | R/W | BAT (FUSE) |
| 42 | W/B | SLIDING MOTOR (BACKWARD) |
| 44 | P | RECLINING MOTOR (BACKWARD) |
| 45 | L/R | FRONT LIFTING MOTOR (UPWARD) |
| 48 | B | GND (POWER) |
