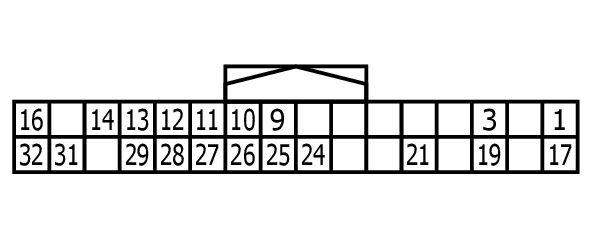

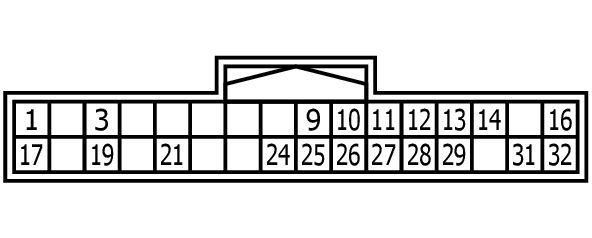

Driver Seat Control Unit Connector End View (B451)
Connector Types: TH32FW
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | L/W | RX |
| 3 | R/Y | CAN-H |
| 9 | W/G | PULSE (RECLINING) |
| 10 | P/B | PULSE (RR LIFTING) |
| 11 | BR | SLIDING SW (BACKWARD) |
| 12 | SB | RECLINING SW (BACKWARD) |
| 13 | LG/R | FRONT LIFTING SW (DOWNWARD) |
| 14 | G/B | REAR LIFTING SW (DOWNWARD) |
| 16 | O | VCC |
| 17 | Y/R | TX |
| 19 | V | CAN-L |
| 21 | L/Y | P RANGE SW |
| 24 | R | PULSE (SLIDING) |
| 25 | Y/B | PULSE (FR LIFTING) |
| 26 | Y | SLIDING SW (FORWARD) |
| 27 | R/G | RECLINING SW (FORWARD) |
| 28 | W/B | FRONT LIFTING SW (UPWARD) |
| 29 | P/L | REAR LIFTING SW (UPWARD) |
| 31 | GR | SENSOR GND |
| 32 | B/W | GND (SIGNAL) |
