Data Link Connector End View (M24)

Connector Types:  BD16FW

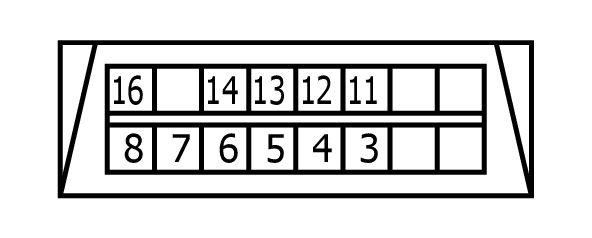

Fig 1: Terminal-side
GNSW29061Courtesy of NISSAN NORTH AMERICA

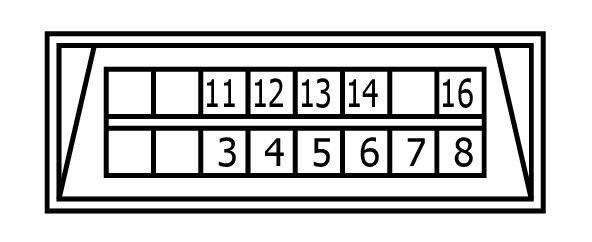

Fig 2: Harness-side
GNSW29219Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
3 LG -
4 B -
5 B -
6 L -
7 GR -
8 G -
11 SB -
12 P -
13 L -
14 P -
16 BG -
