Battery Current Sensor Connector End View (E21)

Connector Types:  RH03FB

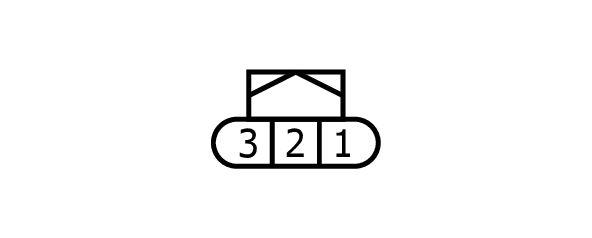

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

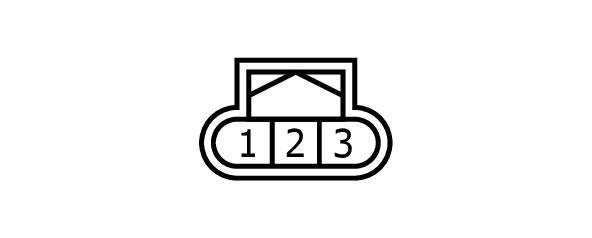

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	P	-
2	G	-
3	W	-
