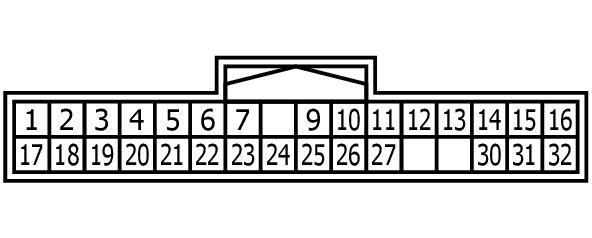

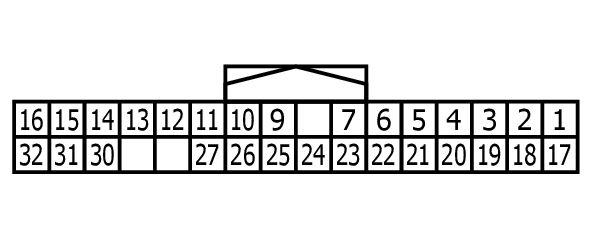

Automatic Drive Positioner Control Unit Connector End View (M51)
Connector Types: TH32FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | Y | TILT SW (UPWARD) |
| 2 | LG | MIRROR SELECT SW (RH) |
| 3 | G | MIRROR SW (UPWARD) |
| 4 | V | MIRROR SW (LEFTWARD) |
| 5 | R | MIRROR SENSOR (RH VERTICAL) |
| 6 | GR | MIRROR SENSOR (LH VERTICAL) |
| 7 | LG | TILT SENSOR |
| 9 | L | ADDRESS1 |
| 10 | V | TX (UART) |
| 11 | SB | TELESCOPIC SW (FRONTWARD) |
| 12 | BG | IND1 |
| 13 | P | IND2 |
| 14 | BG | MIRROR MOTOR (RH VERTICAL) |
| 15 | GR | MIRROR MOTOR (RH HORIZONTAL) |
| 16 | Y | MIRROR MOTOR (LH COMMON) |
| 17 | W | TILT SW (DOWNWARD) |
| 18 | P | MIRROR SELECT SW (LH) |
| 19 | SB | MIRROR SW (DOWNWARD) |
| 20 | BR | MIRROR SW (RIGHTWARD) |
| 21 | L | MIRROR SENSOR (RH HORIZONTAL) |
| 22 | G | MIRROR SENSOR (LH HORIZONTAL) |
| 23 | P | TELESCOPIC SENSOR |
| 24 | R | SET SW |
| 25 | SB | ADDRESS2 |
| 26 | Y | RX (UART) |
| 27 | G | TELESCOPIC SW (BACKWARD) |
| 30 | R | MIRROR MOTOR (RH COMMON) |
| 31 | LG | MIRROR MOTOR (LH VERTICAL) |
| 32 | L | MIRROR MOTOR (LH HORIZONTAL) |
