Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

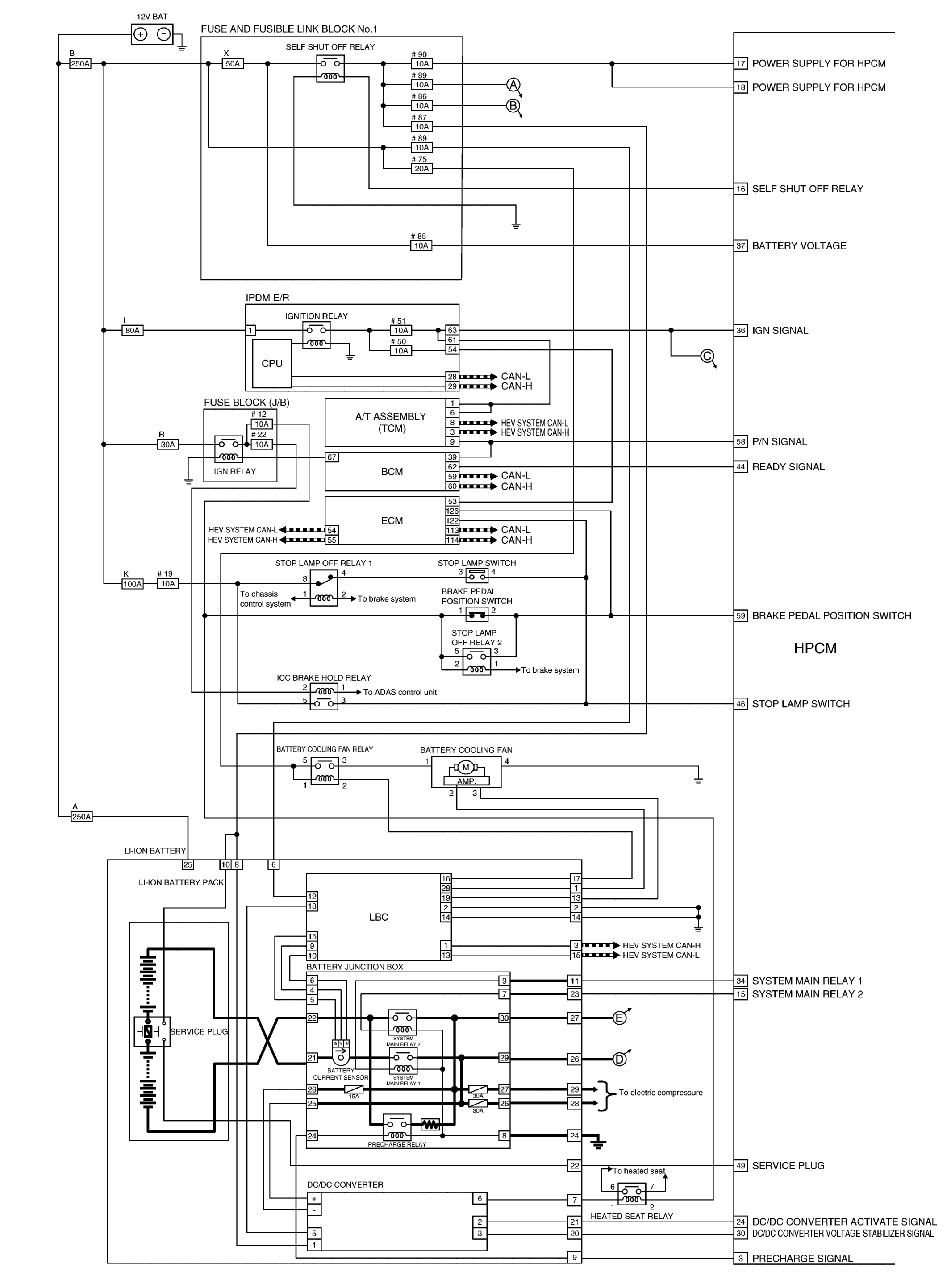

G09166303Courtesy of NISSAN NORTH AMERICA, INC.

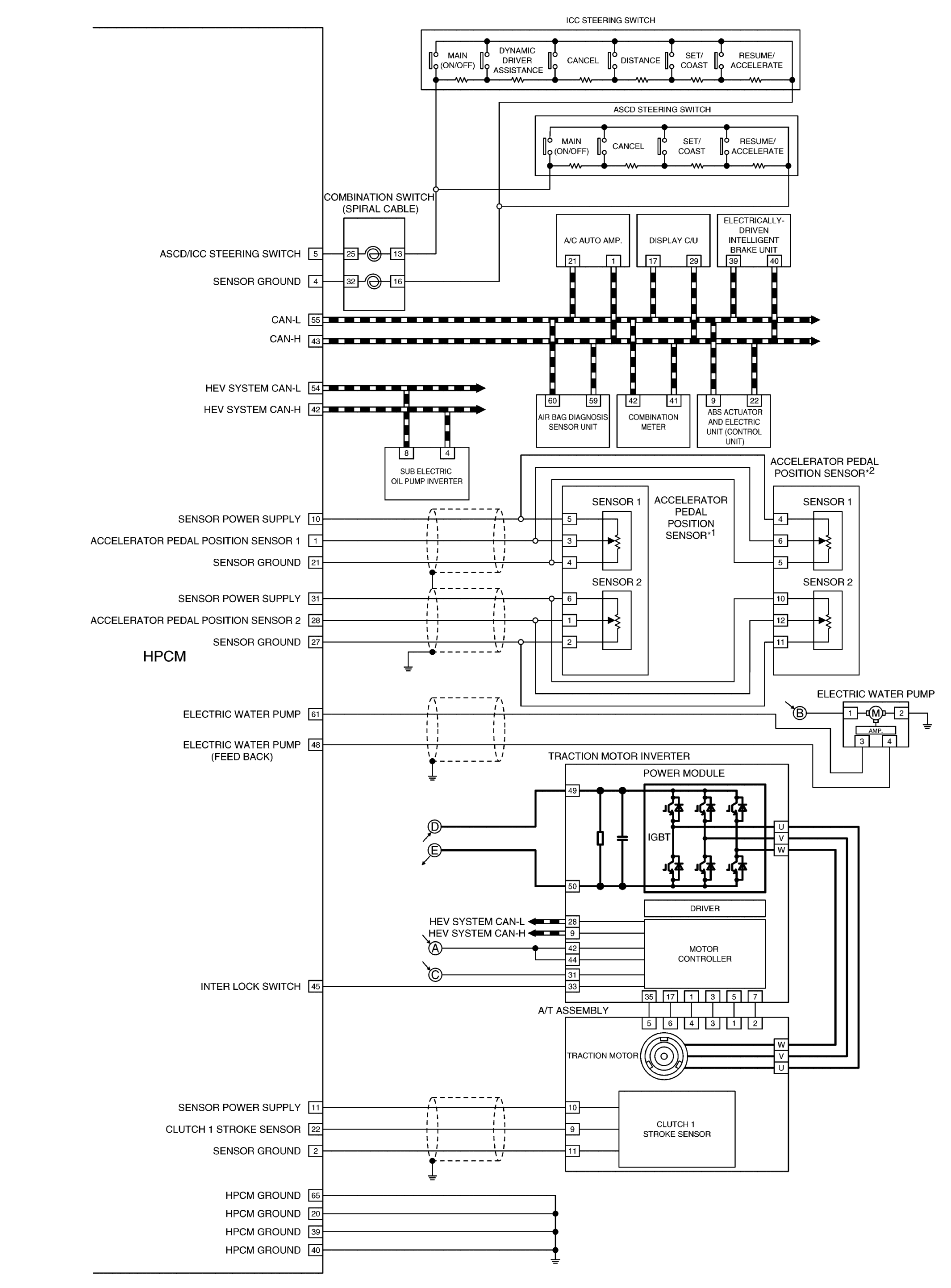

G09166304Courtesy of NISSAN NORTH AMERICA, INC.

* 1: Not applicable

* 2: With ASCD and ICC models

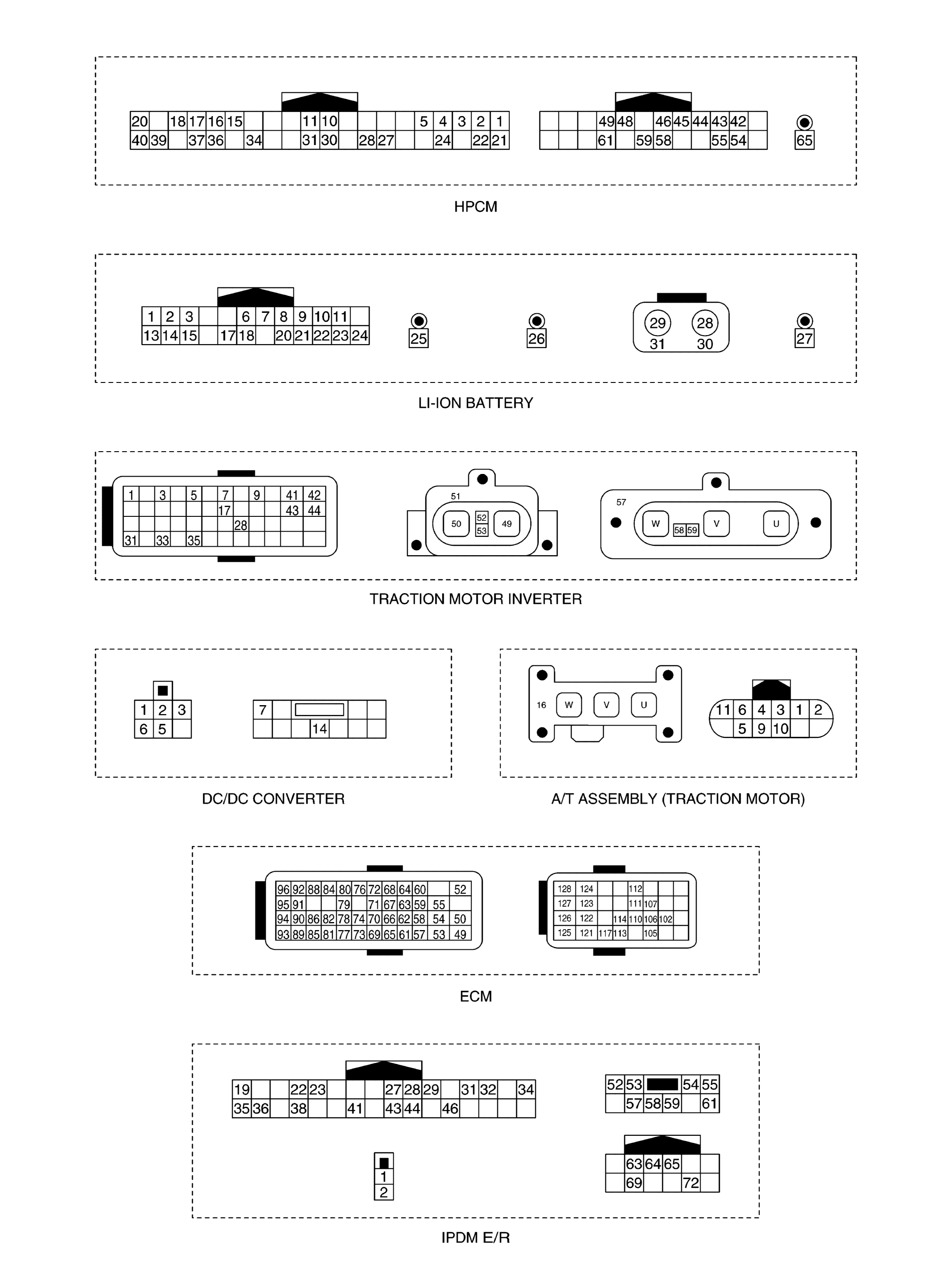

G09166305Courtesy of NISSAN NORTH AMERICA, INC.

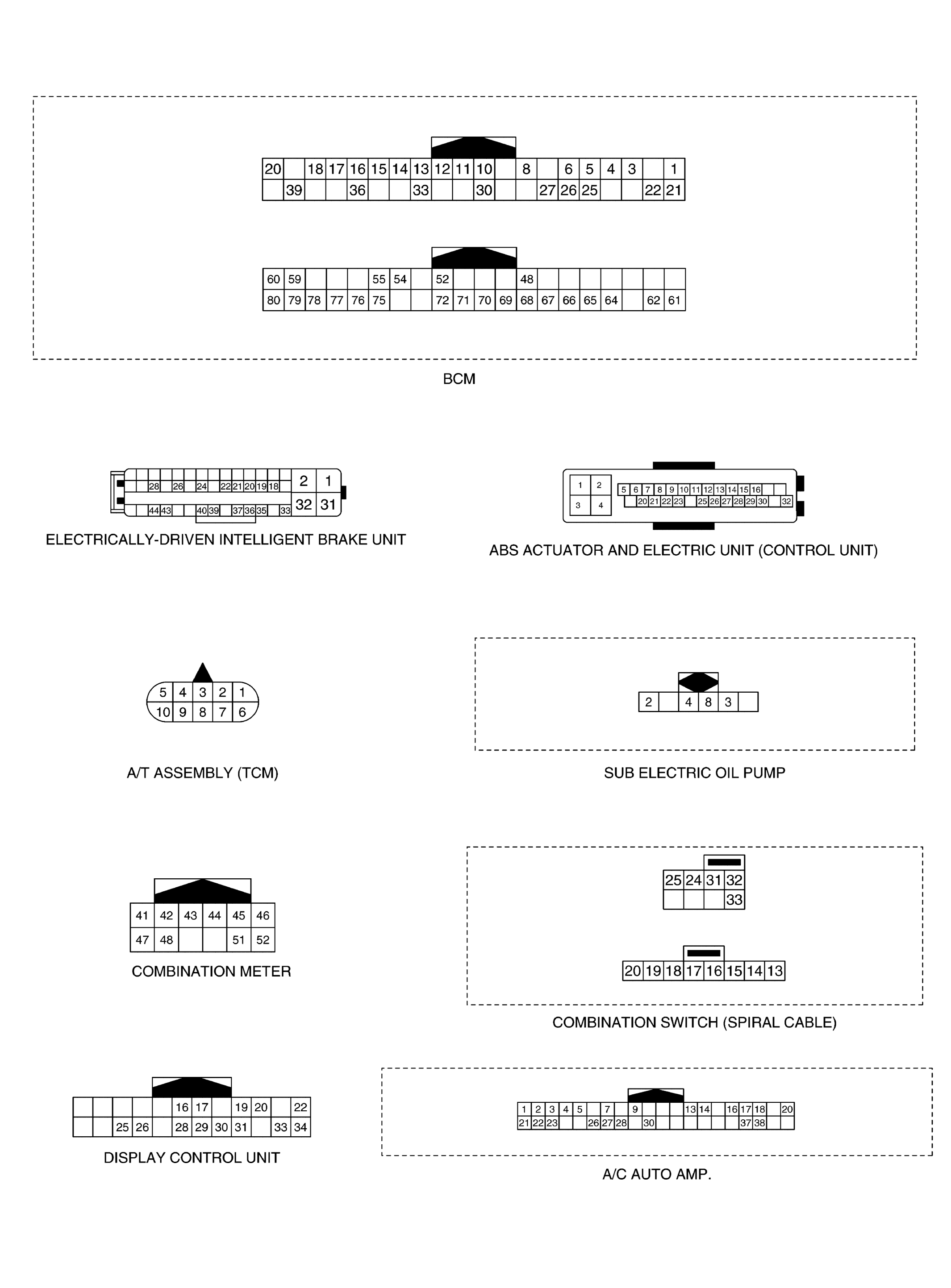

G09166306Courtesy of NISSAN NORTH AMERICA, INC.

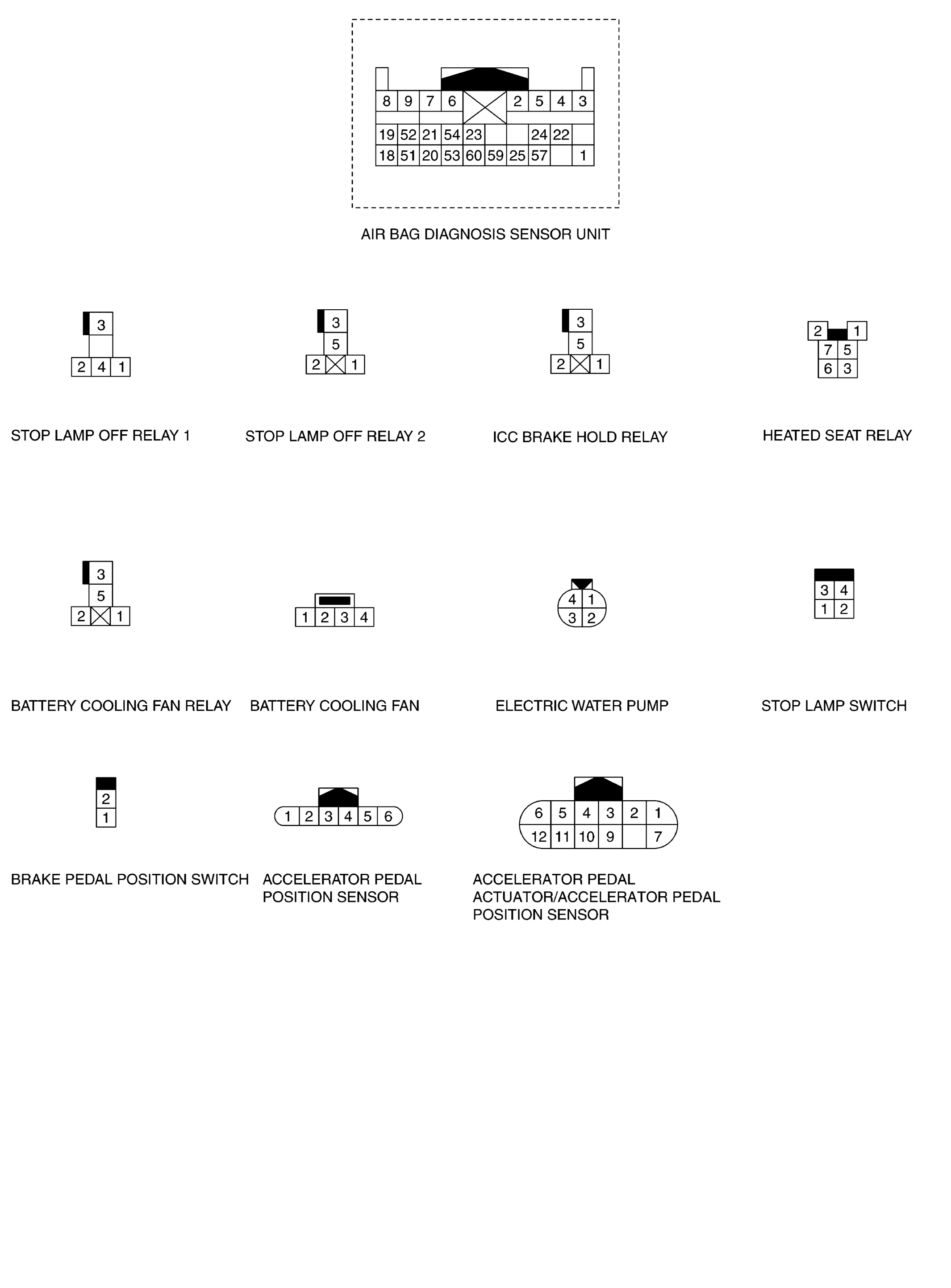

G09166307Courtesy of NISSAN NORTH AMERICA, INC.
